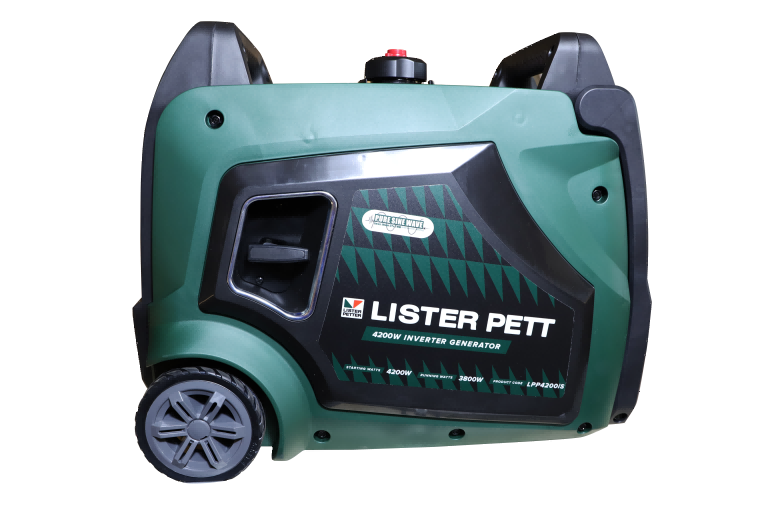

LPP4200iS
AC Frequency
50Hz, 60Hz
Maximum Power Output
5.3kW/4000rpm
Fuel Tank Copacity
12L
Overview
Low Noise Level
Fully enclosed design dramatically reduces noise levels.
SINE-WAVE Output
Available Directly to Power Precision Equipment
Light Weight
Compact design, easy to transport with built-in handle.
LED Indicators
Low on oil, overloaded, or ready-to-use.
Parallel Fuction
Available to connect two inverter generators for twice power.(Parallel kit sold separately.)
Low-oil Protect
Low oil level Shutdown automatically, to protect engine from I incurring damage.
| Engine Type | 4-stroke, OHV |
|---|---|
| Bore x Stroke | 72 x 55mm |
| Displacement | 224cc |
| Compression Ratio | 9.2:1 |
| Max. Power Output | 5.3kW/4000rpm |
| Starting system | Recoil |
| AC Frequency | 50Hz, 60Hz |
| Fuel tank copacity | 12L |
| Rated DC voltage | 12V/8.3A |
| Noise Level @ 7m(1/4 Load) | 62dB(A) |
| Dimensions(L*W*H) | 695 x 525 x 570mm |
| Net Weight(appr.) | 44kg(49kg for iE&iM) |
