Fixed Speeds
1500 | 1800 r/min
Maximum Power
1500 r/min—11-12kW
1800 r/min—13.2-15kW
Injection
BOSCH Common Rail with ECU
LP311EVG1, LP322EVG1, LP322EVG2, LP430EVG2, LP311EG1, LP429EG1, LP432EG2, LP435EG2

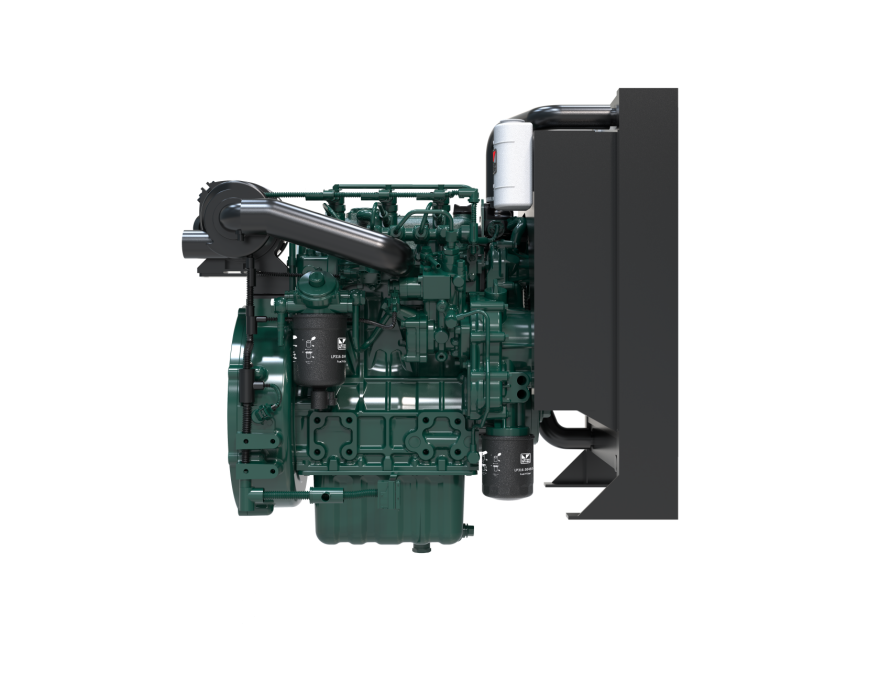

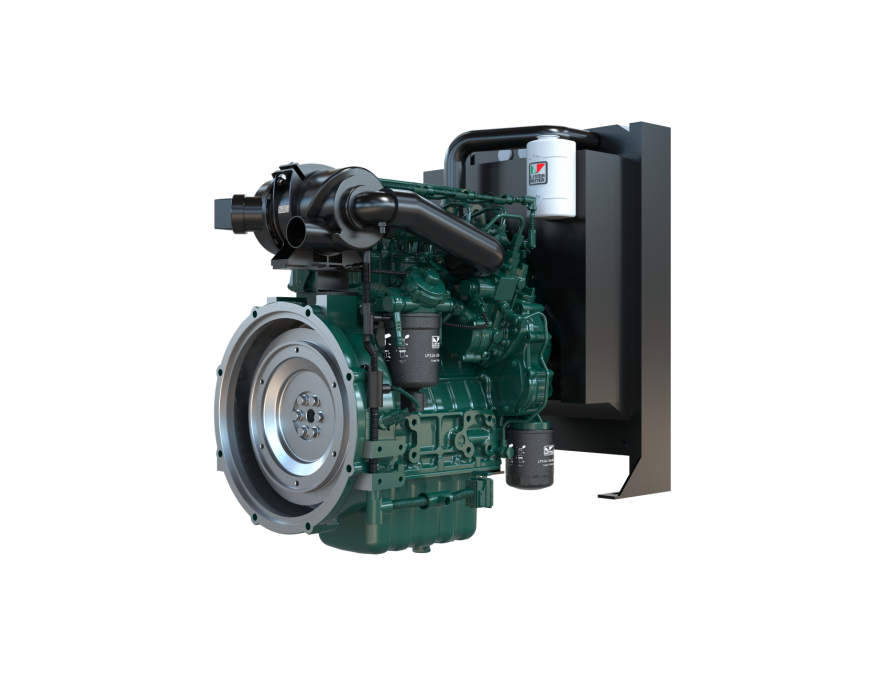

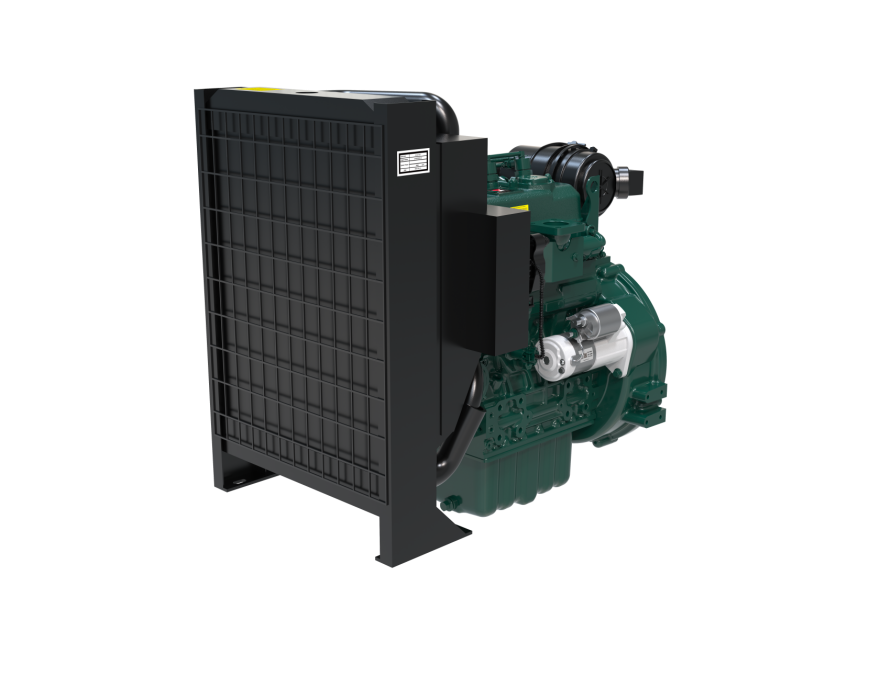

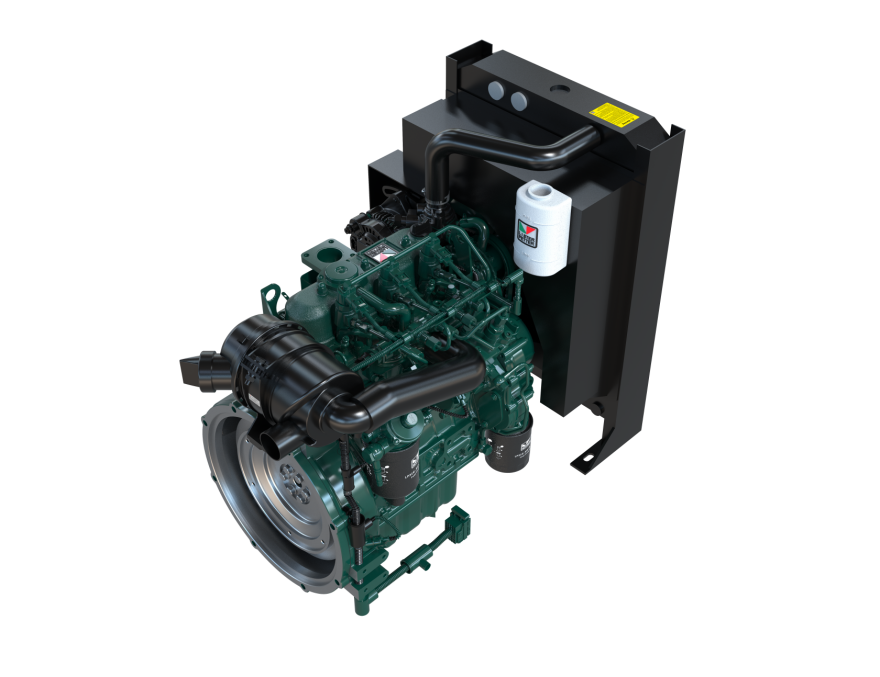

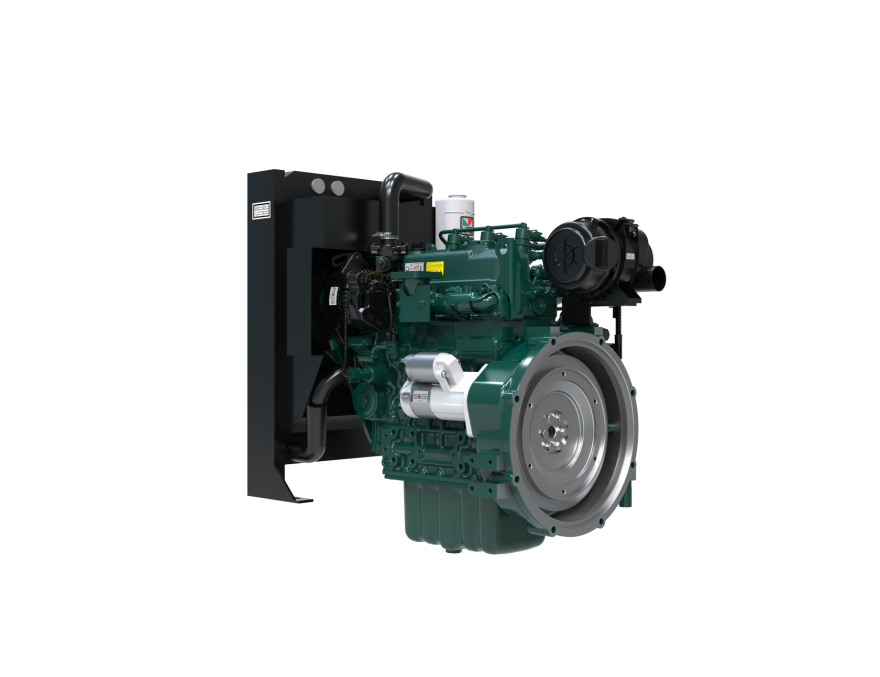

The MERCURY MAX series, with ratings from 11 kW to 62kW available in 1500rpm and 1800rpm. This is the first of the Stage V compliant engines in the range for Lister Petter. The engine uses a Bosch common rail fuel injection equipment and ECU to control fuel delivery and to achieve Stage V emissions compliance. The 3-cylinder 1.1 litre engine offers exceptional power in a compact package.
| Cooling System | Liquid |
|---|---|
| Minimum Full Load Speed | 1500 r/min |
| Maximum Full Load Speed | 1800 r/min |
| Number of Cylinders | 3L |
| Bore | 78 mm |
| Stroke | 78.4 mm |
| Displacement | 1.1 litres |
| Injection | BOSCH Common Rail with ECU |
| Aspiration | Natural |
| Starting | Electric |
| Firing Order | 1-3-2 |
| Compression Ratio | 18.0 : 1 |
| Max Operating Temp | 52℃（122℉） |
| Weight | 130 kg |
| Length | 810 mm |
| Width | 470 mm |
| Height | 708 mm |
| Emissions | Stage V |
|---|---|
| Engine Series | Mercury Max |
| Engine Type | Forklift Drive Engine, G Drive Engine, Pump Drive Engine |
| Frequency | 50Hz, 60Hz |
| Fuel Type | Diesel |
| Power Range | 0-85 kW |
