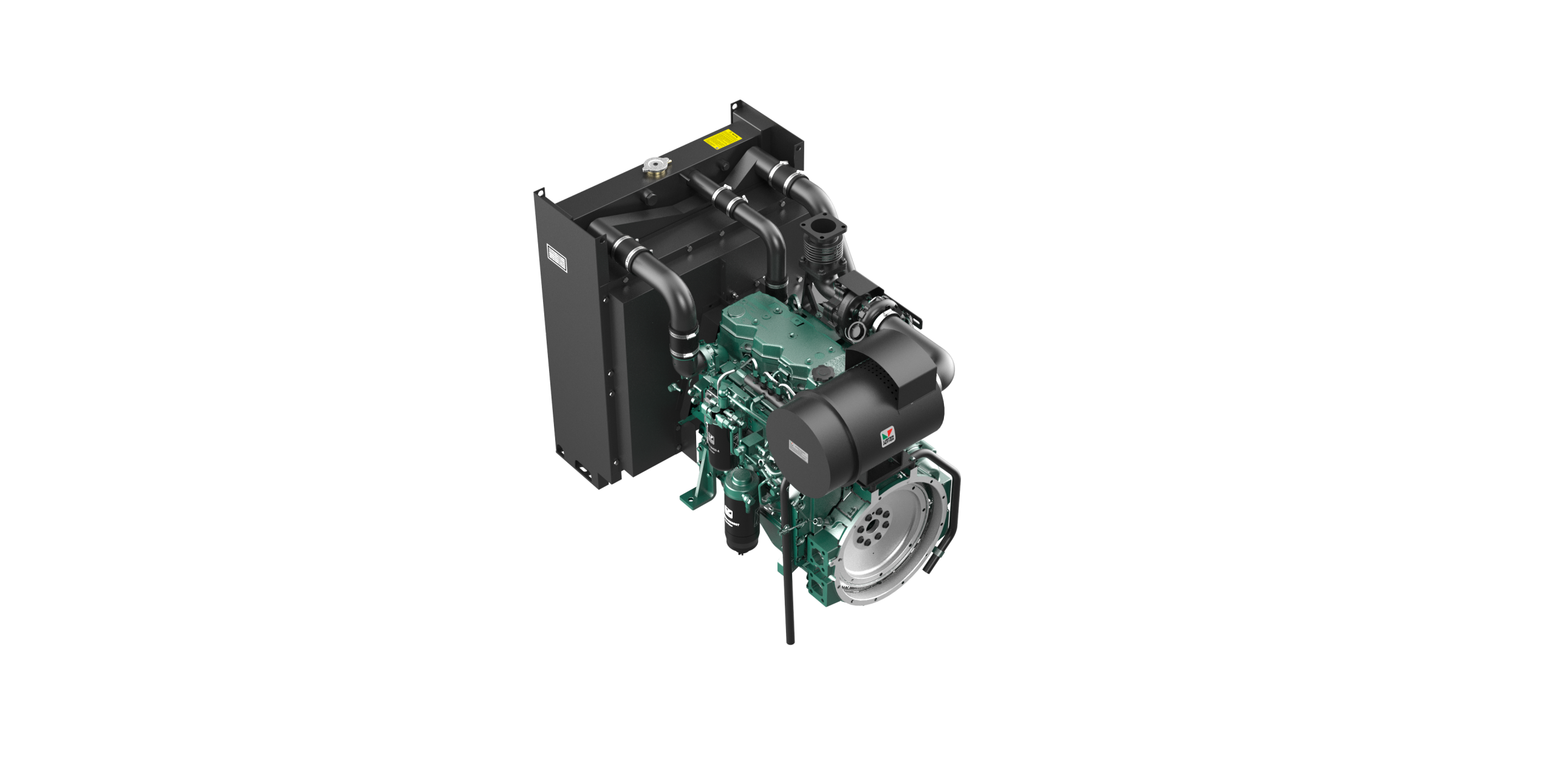

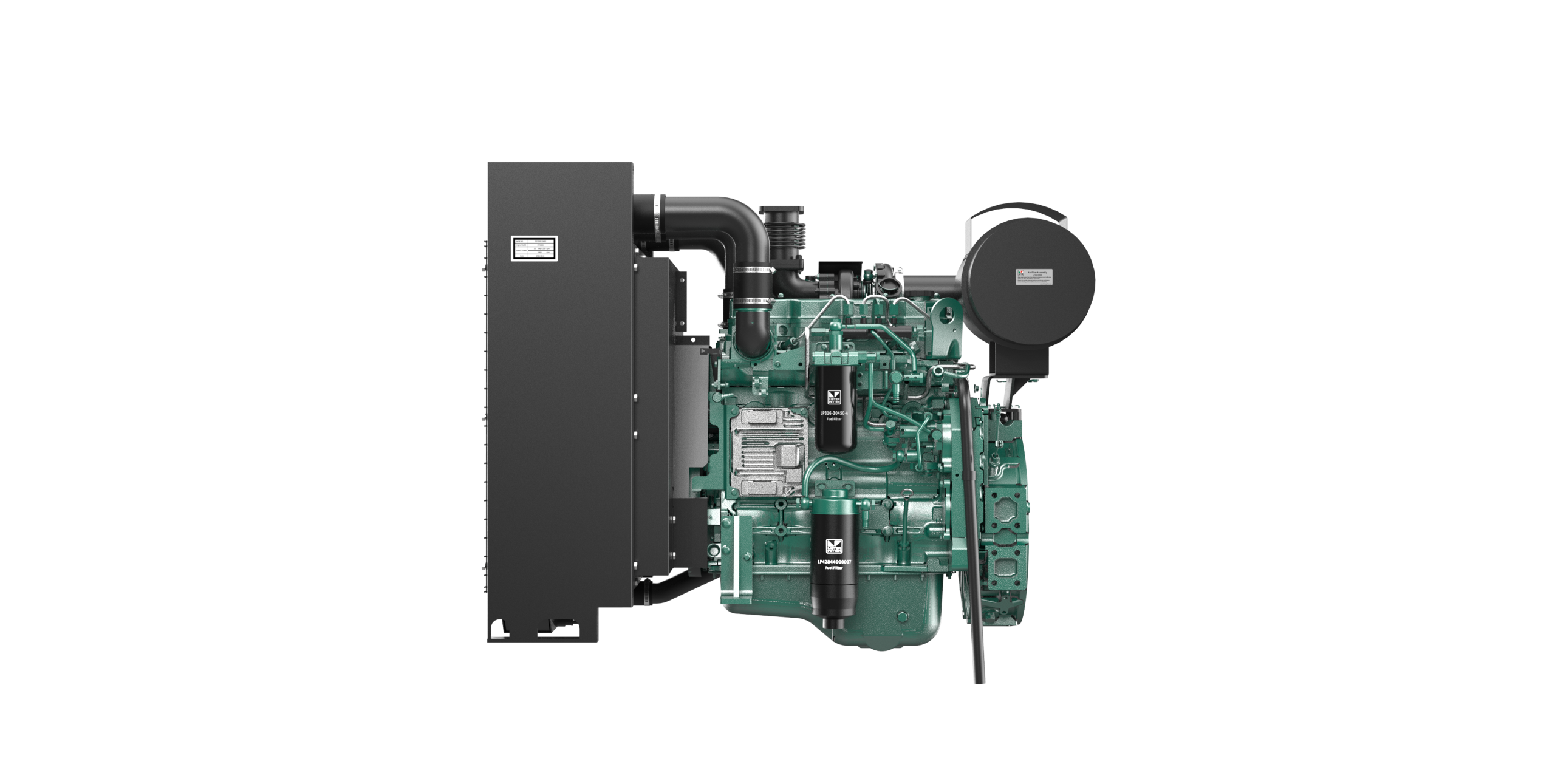

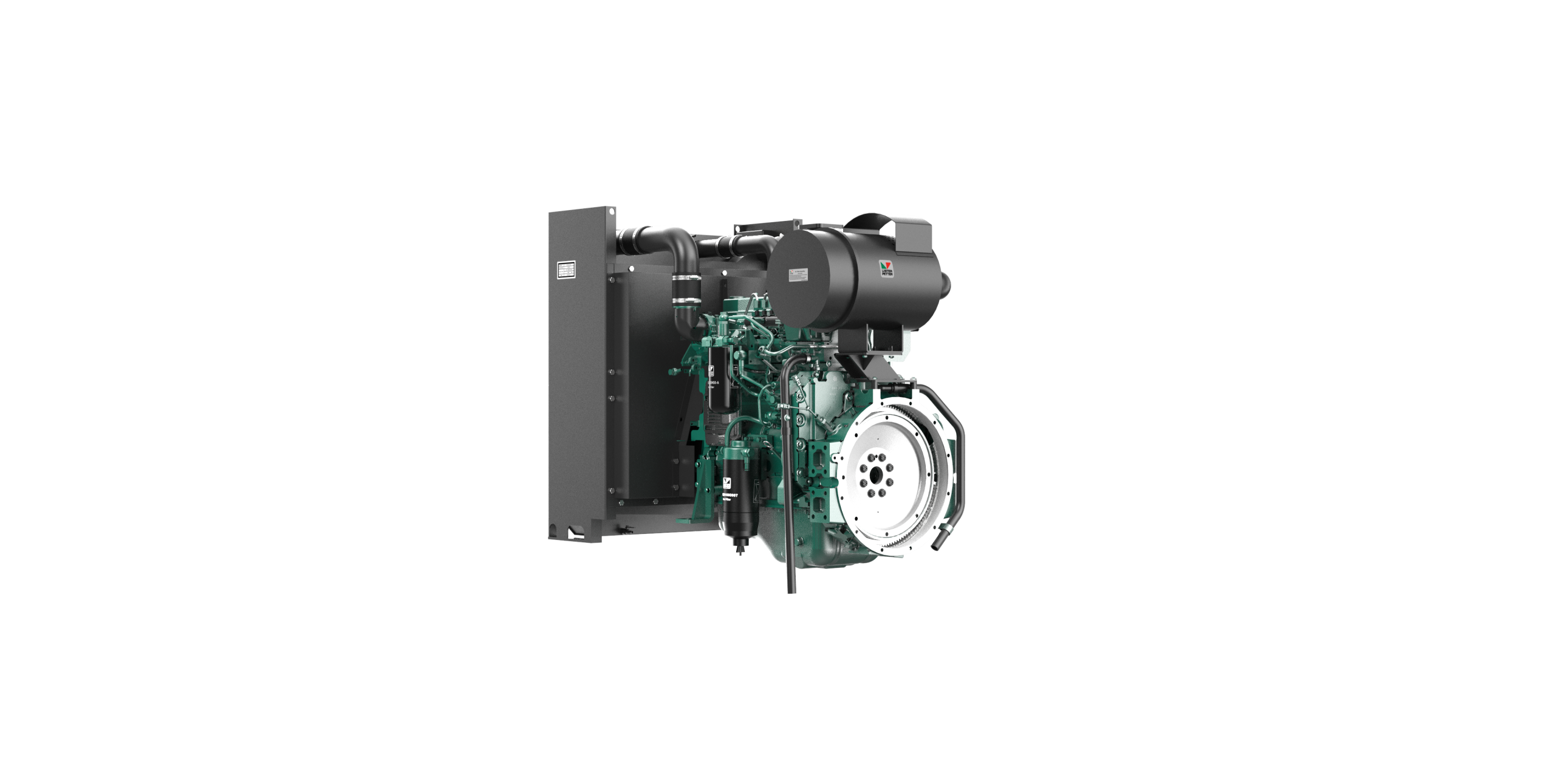

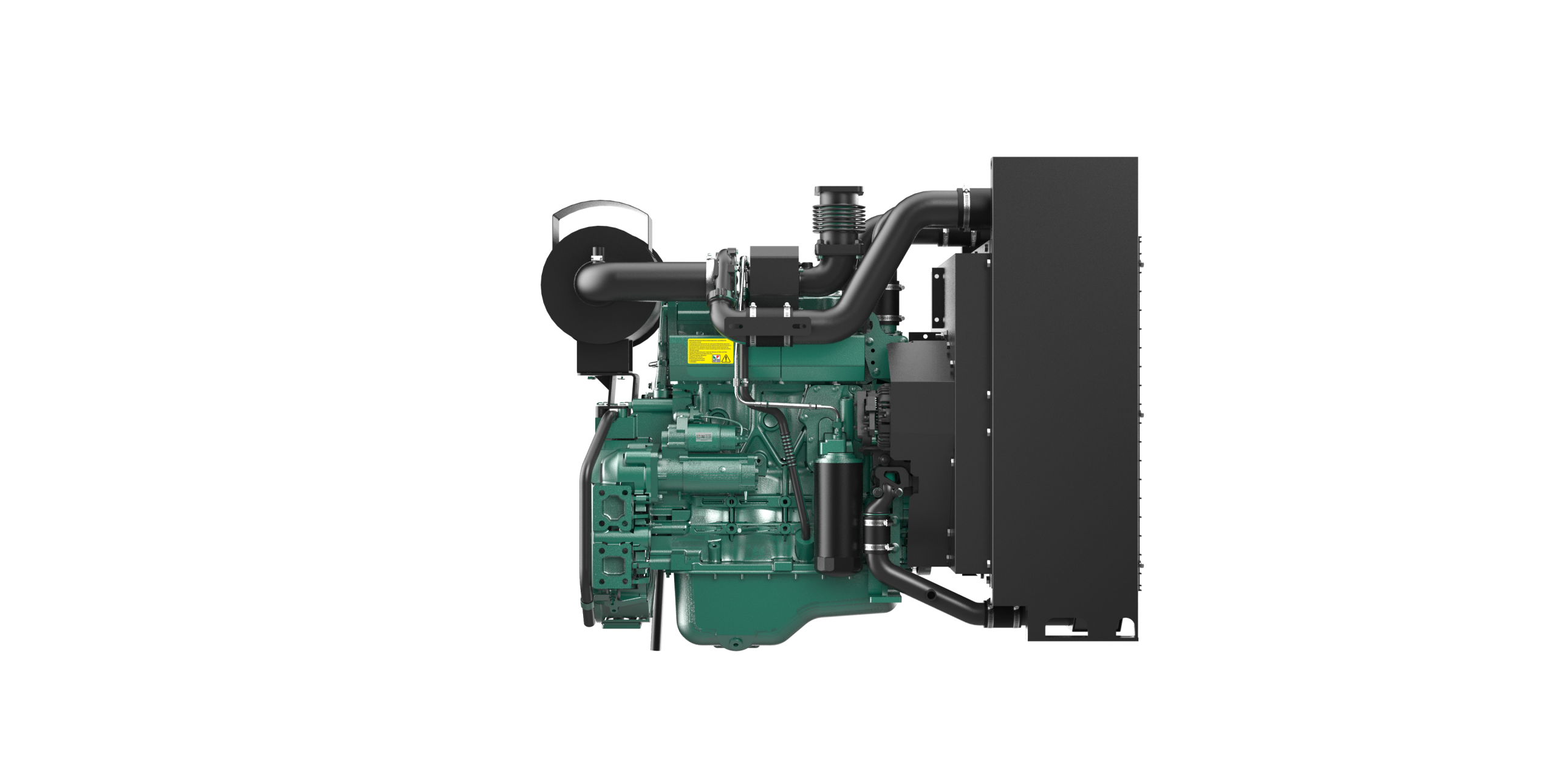

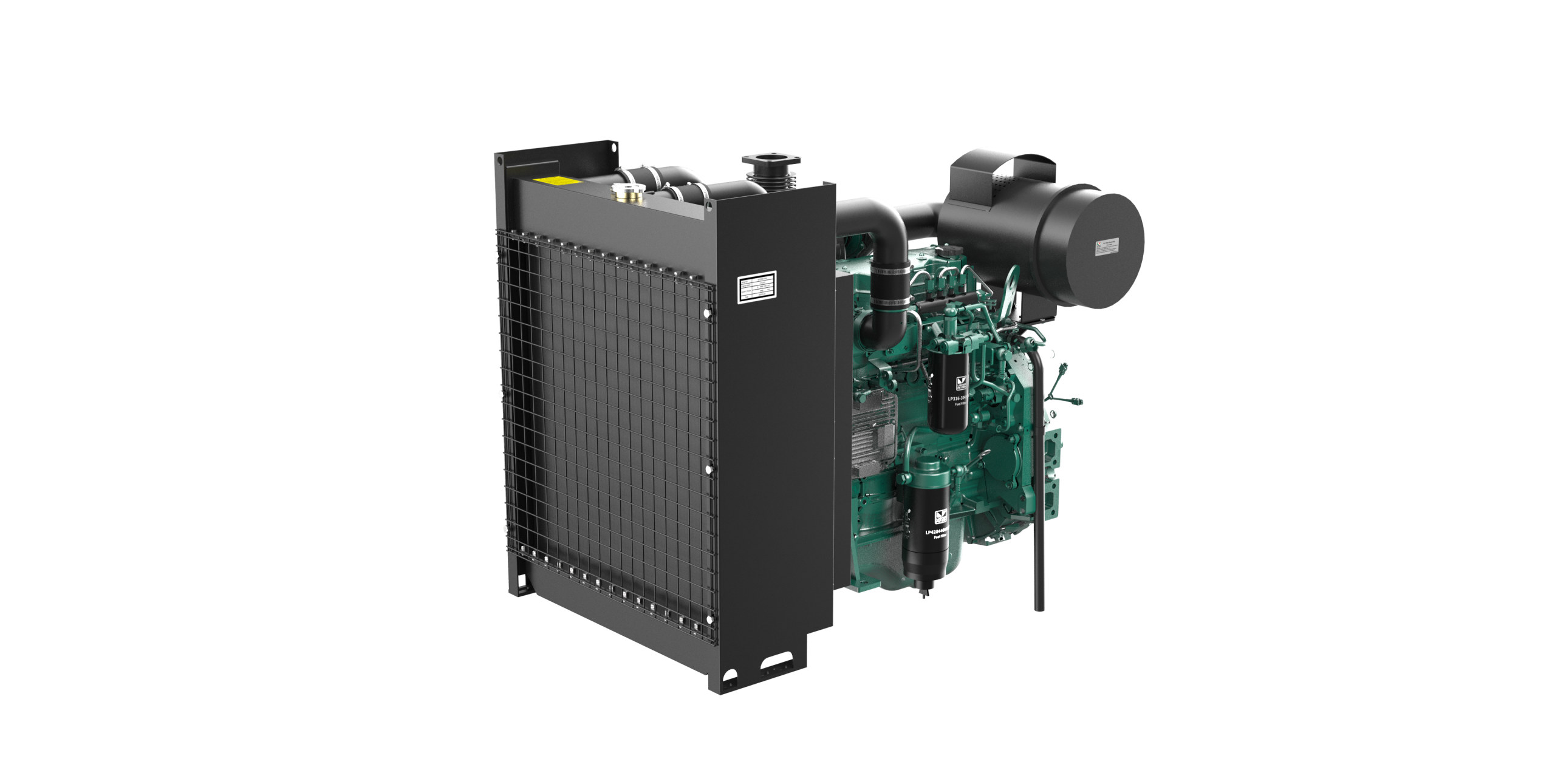

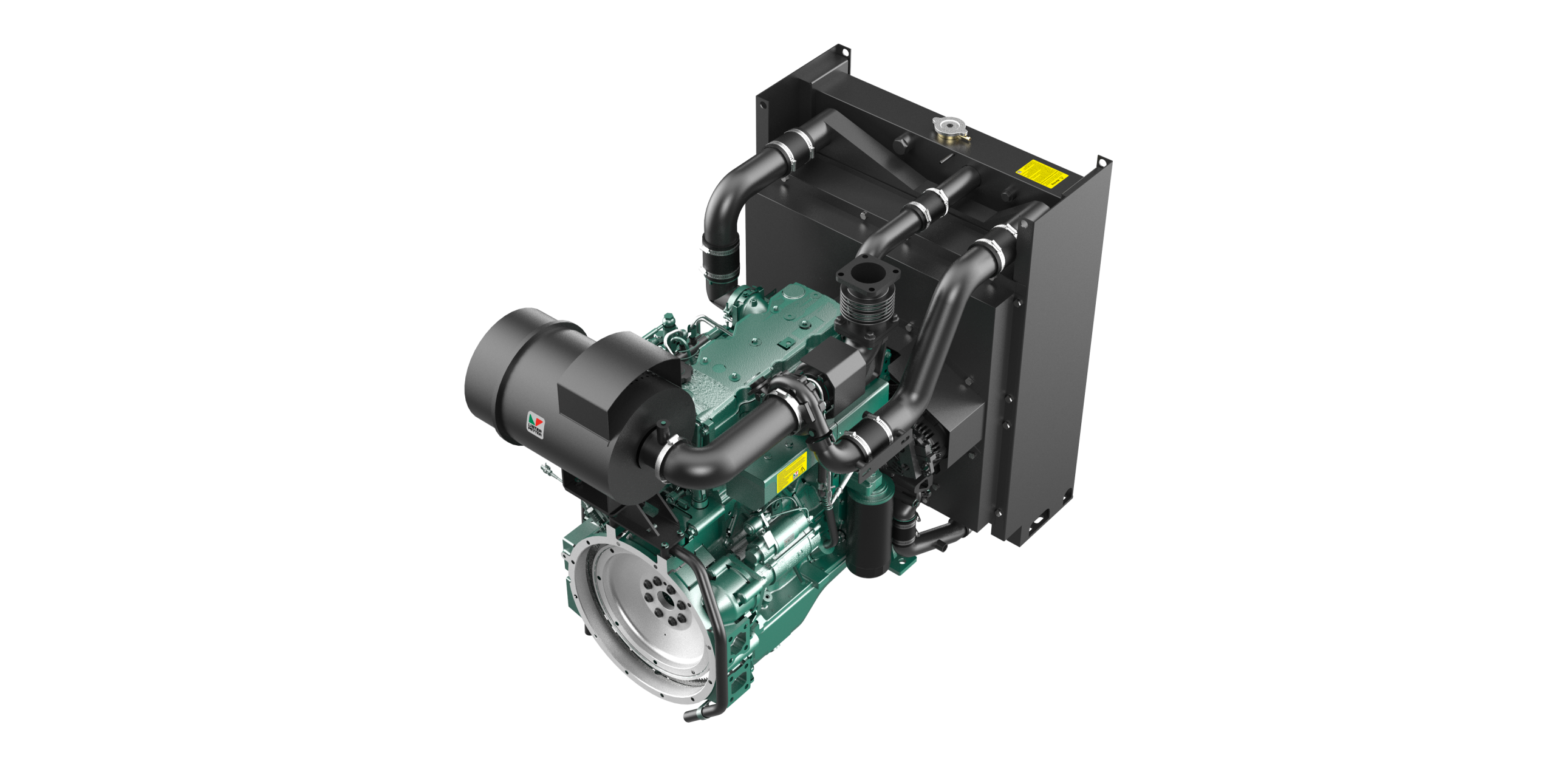

Venus LP443G6

For 150 years, Lister Petter has led the field in design and manufacturing of high-performance diesel engines
Venus LP443G6

Venus LP443G6

Fixed Speeds
1500 | 1800 r/min

Maximum Power
1500 r/min—120-132kW
1800 r/min—120-132kW

Injection
Direct

Description

Venus

Models: LP443G1, LP443G2, LP443G3, LP443G4, LP443G5, LP443G6, LP665G1, LP665G2, LP665G3, LP689G1, LP689G2, LP689G3, LP612G1, LP612G2, LP613G1, LP613G2

One of Lister Petter’s leading engines, the Venus series comes with a mechanical or electronic governor option.
Tried and trusted technology offers easy maintenance and in-field servicing, while its compact design allows cost-effective gen-set packaging.

  • Dual frequency operation at 50 Hz / 60 Hz
  • High performance cooling system operates in ambient temperatures of up to 50 °C
  • Cold starts down to minus 40 °C
  • No altitude derating up to 3,500 m
  • Easy, cost-effective servicing with full global backup in parts and expertise from Lister Petter service outlets
  • Mechanical and electronic governor variants
  • 500-hour service intervals (depending on operating conditions)

Technical Specifications

Cooling System Liquid
Minimum Full Load Speed 1500 rpm
Maximum Full Load Speed 1800 rpm
Number of Cylinders 4L
Bore 105 mm
Stroke 124 mm
Displacement 4.3 L
Governor Electronic Governor
Injection Direct
Aspiration Turbo & Air to Air Intercooler
Starting Electric
Firing Order 1-3-4-2
Compression Ratio 16:1
Max Operating Temp 52 °C (122 ℉)
Weight 504 kg
Length 1,364 mm
Width 790 mm
Height 1,079 mm

Additional information

Emissions

Stage II

Engine Series

Venus

Fuel Type

Gas

Power Range

86-200 kW
