Fixed Speeds
1500 | 1800 r/min
Maximum Power
1500 r/min—11-12.1kW
1800 r/min—13.1-14.4kW
Injection
Direct

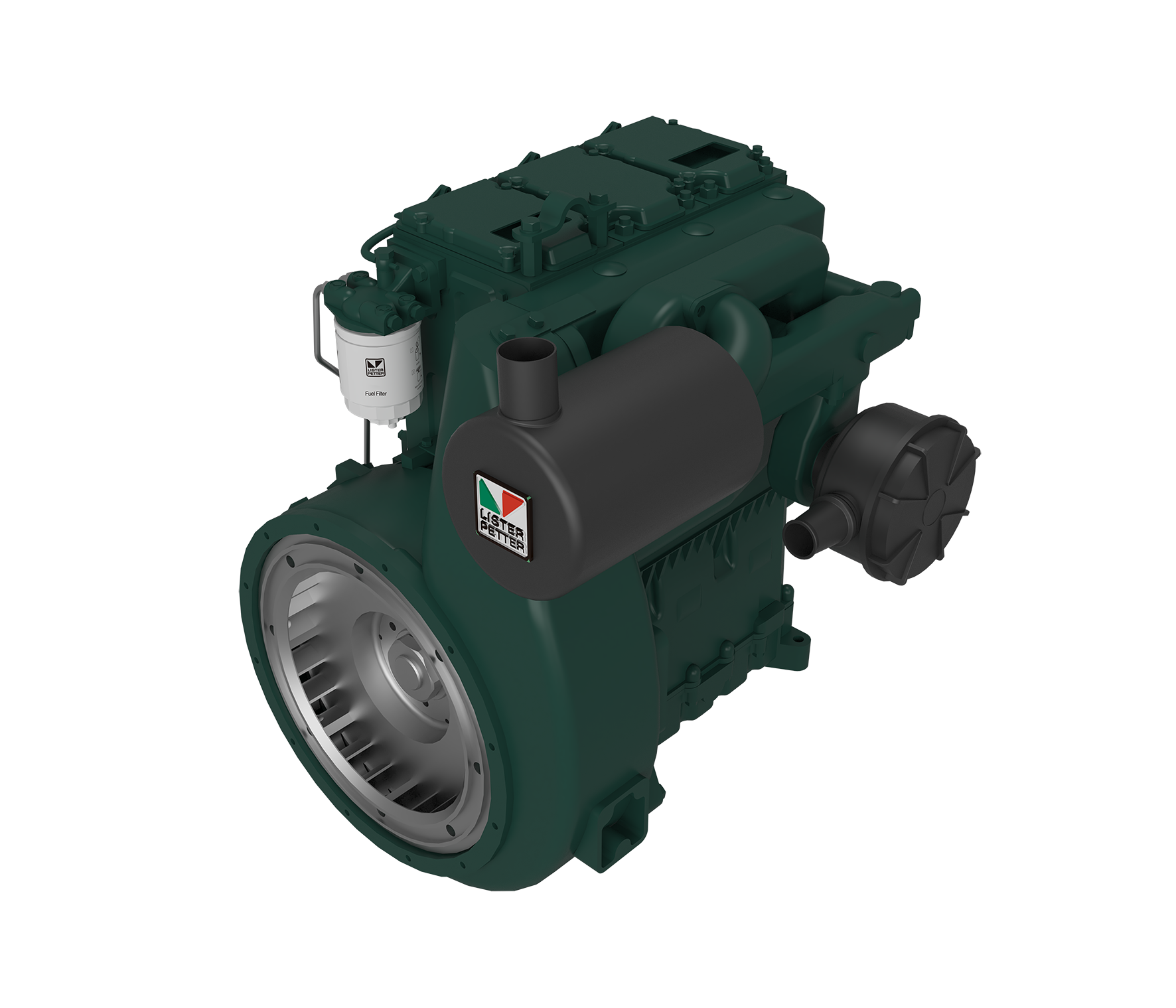

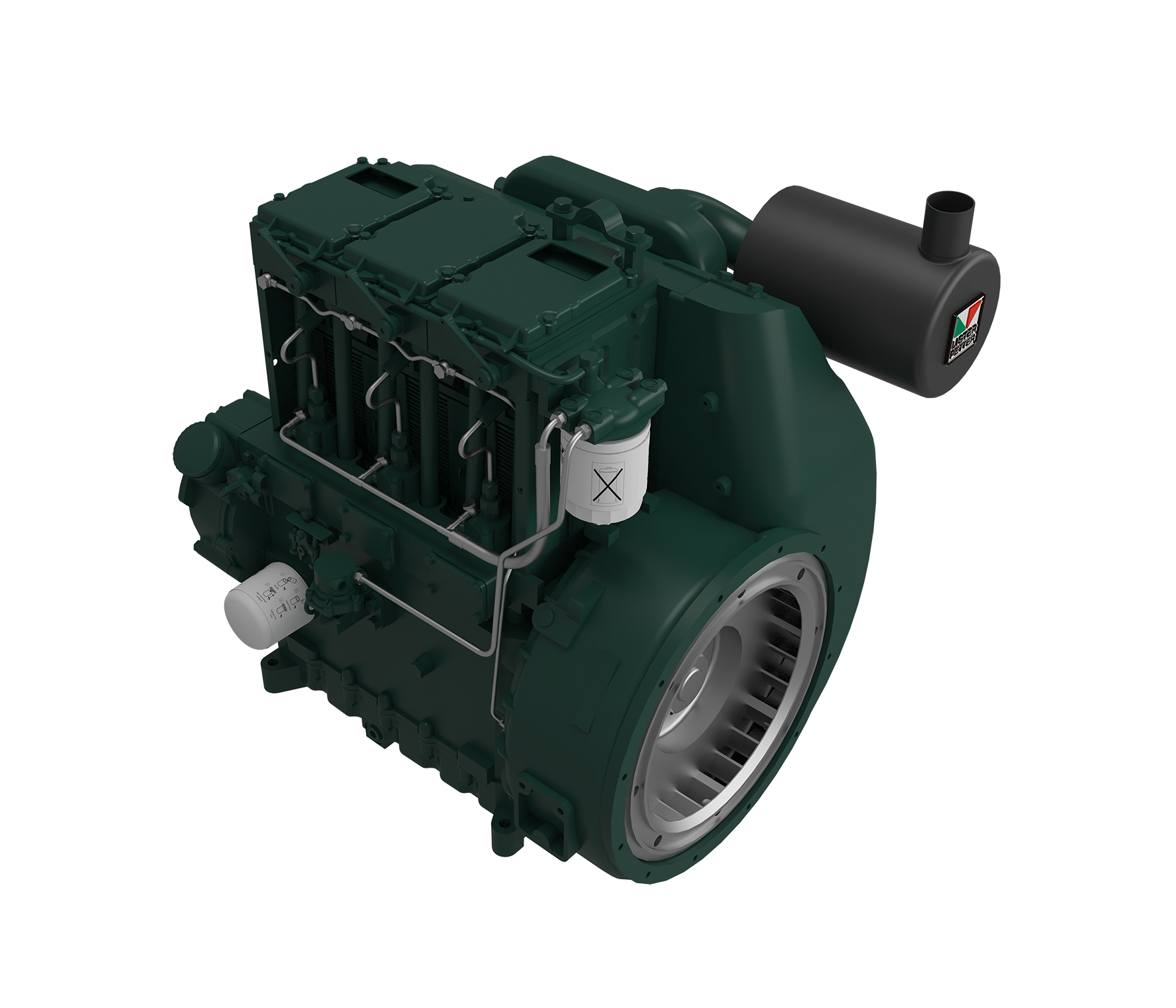

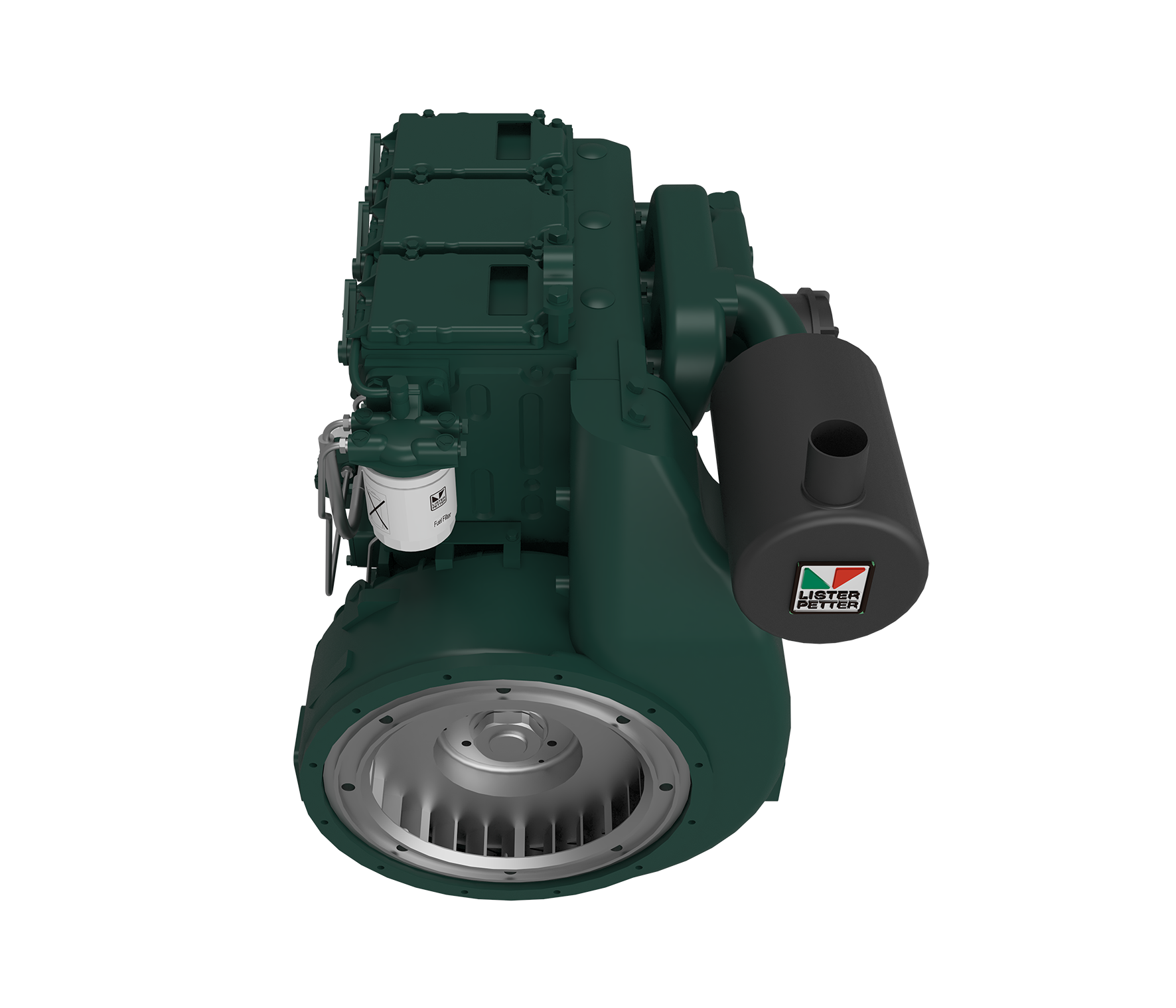

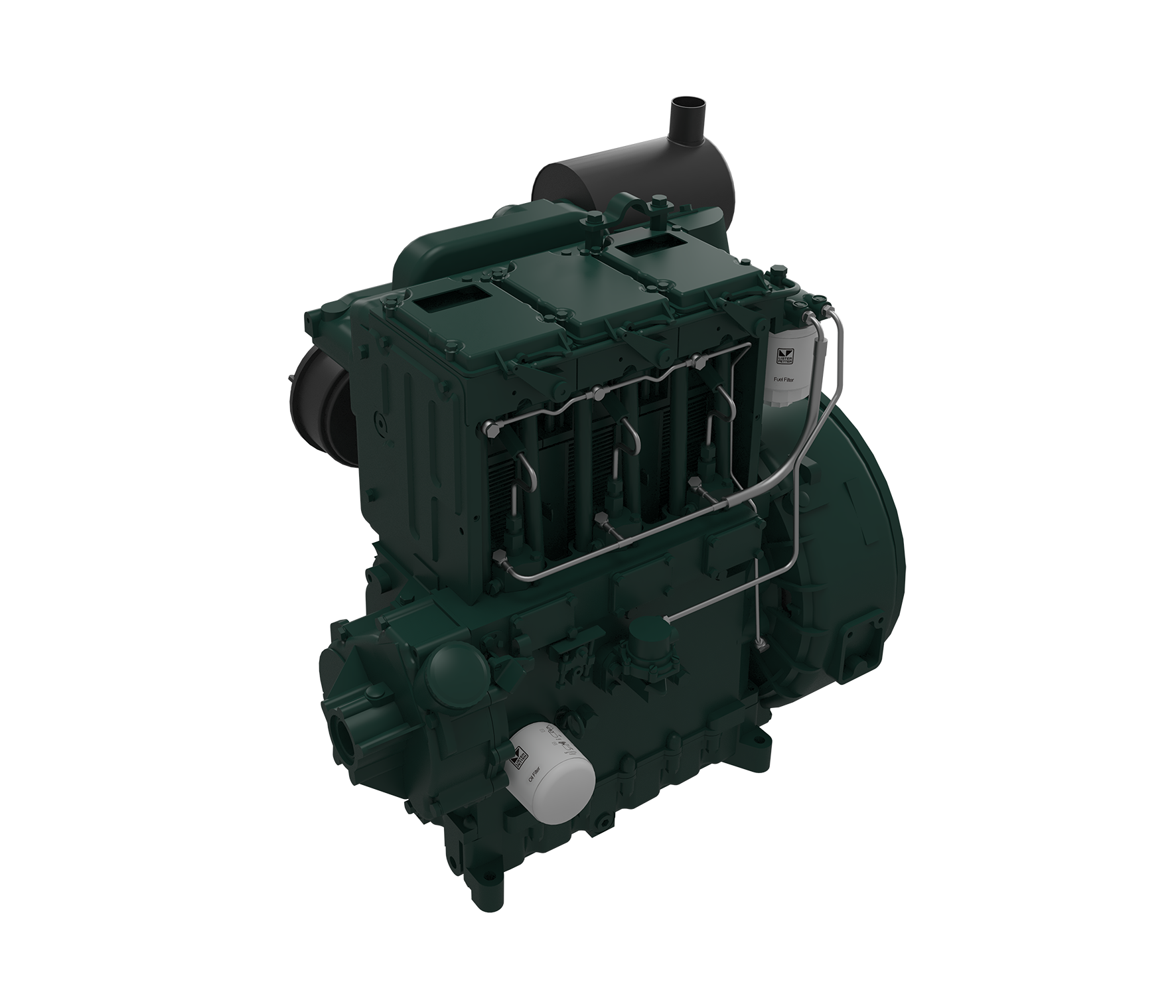

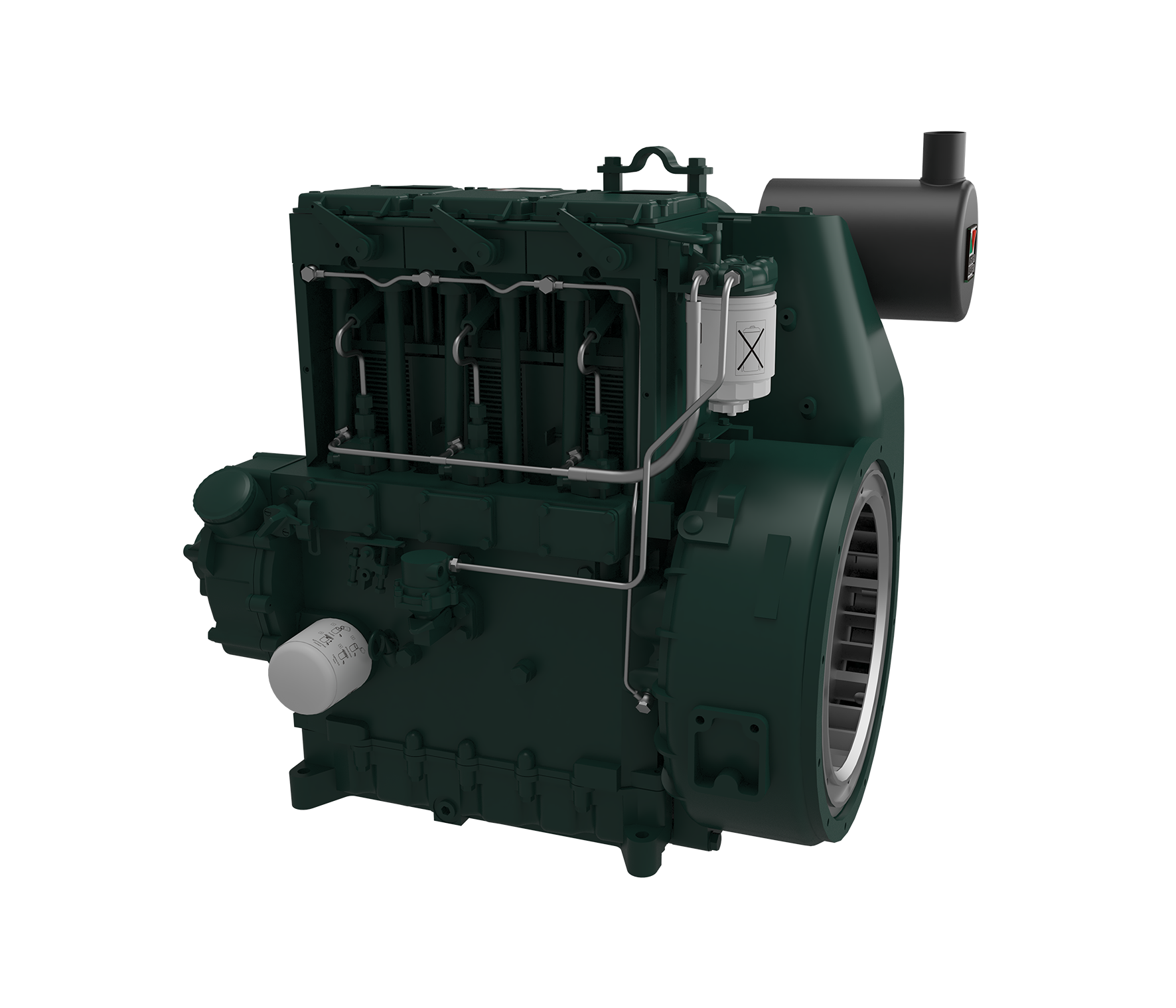

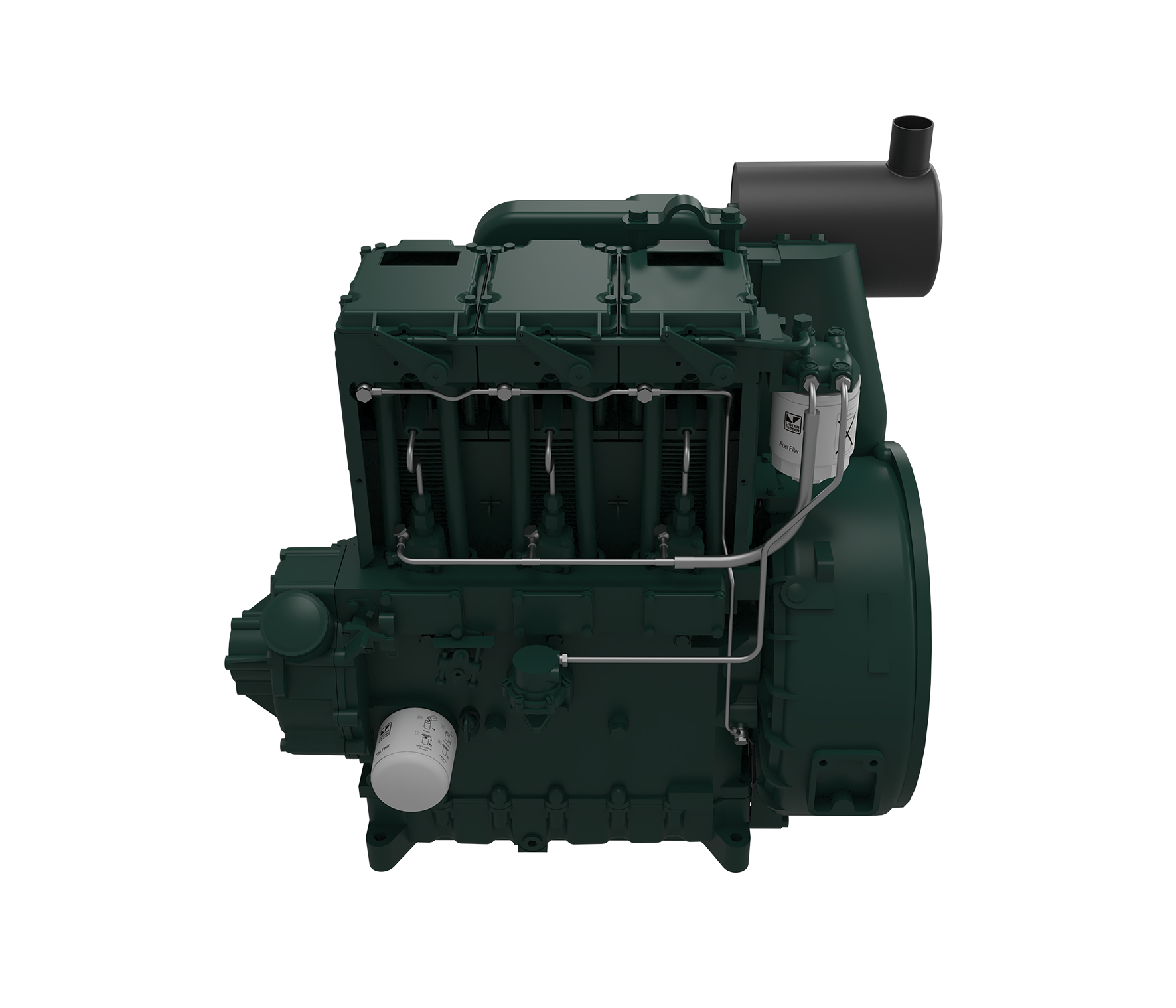

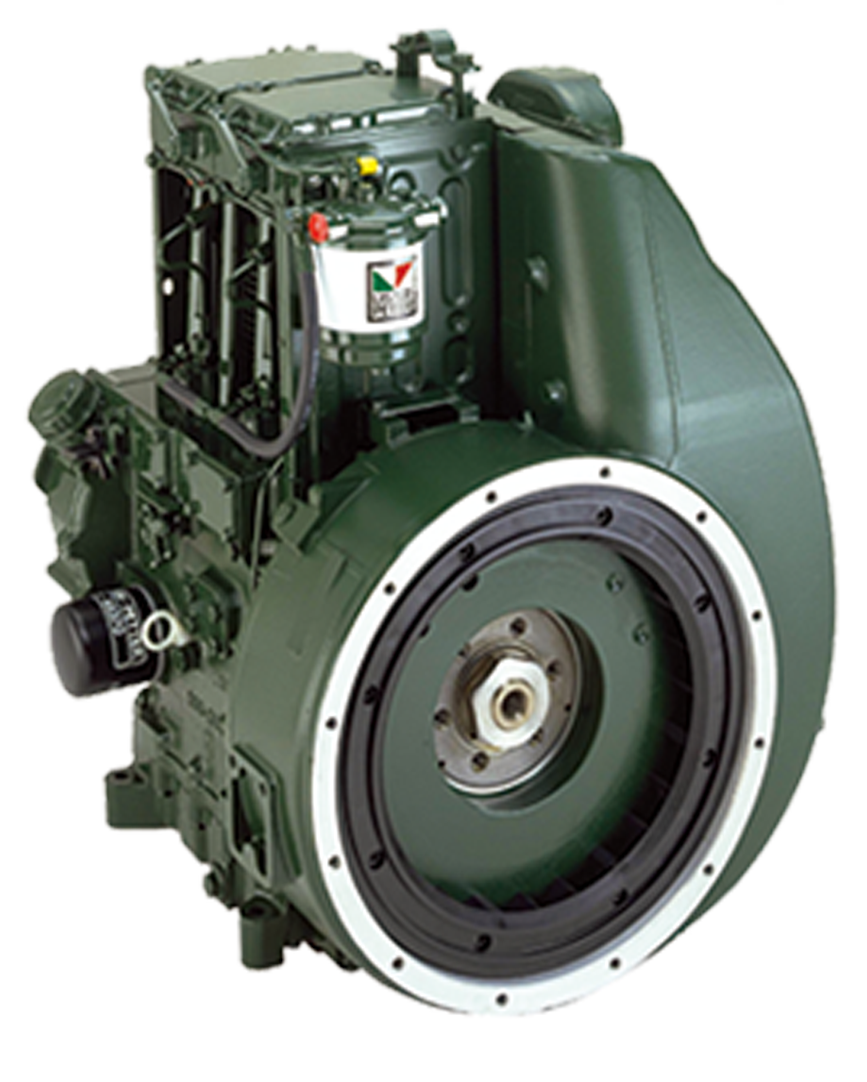

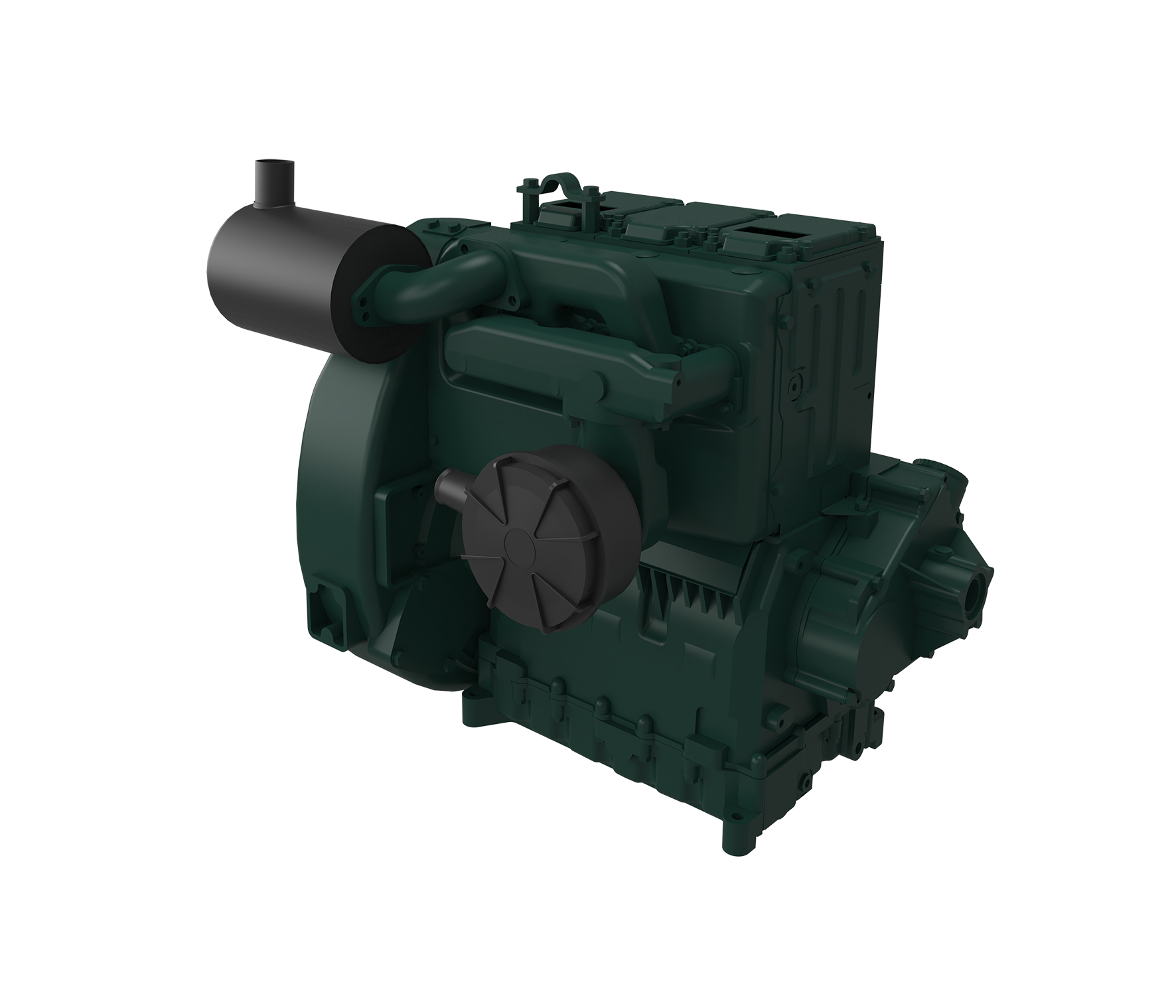

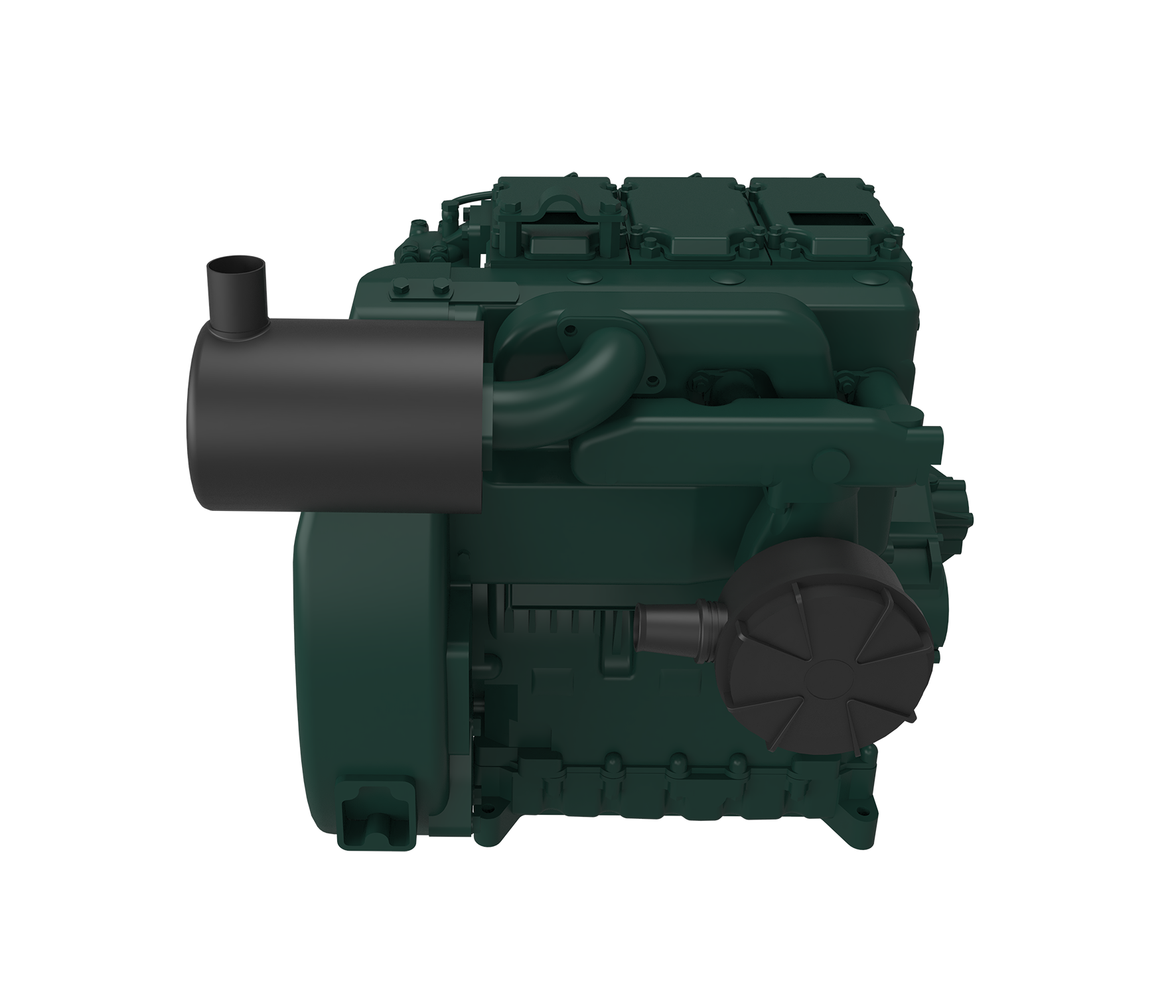

TR Generator Engines TR1, TR2, TR3
Compact power units for unregulated emissions territories, designed for use in ambient temperatures up to 40ºC. These reliable air-cooled engines reach efficient operating temperature swiftly and can be left unmanned for long periods. Durable and easy to maintain with 250-hour intervals between oil and filter changes (dependent on operating conditions).
| Cooling System | Air |
|---|---|
| Minimum Full Load Speed | 1500 r/min |
| Maximum Full Load Speed | 1800 r/min |
| Number of Cylinders | 2L |
| Bore | 98.4 mm |
| Stroke | 101.6 mm |
| Displacement | 1.546 litres |
| Injection | Direct |
| Aspiration | Natural |
| Starting | Hand (electric) |
| Firing Order | 1-2 |
| Compression Ratio | 15.5:1 |
| Max Operating Temp | 40℃ (104℉) |
| Weight | 185 kg |
| Length | 571 mm |
| Width | 521 mm |
| Height | 683 mm |
| Engine Series | TR |
|---|---|
| Emissions | Stage II |
| Fuel Type | Diesel |
