TR Generator Engines TR1

For 150 years, Lister Petter has led the field in design and manufacturing of high-performance diesel engines

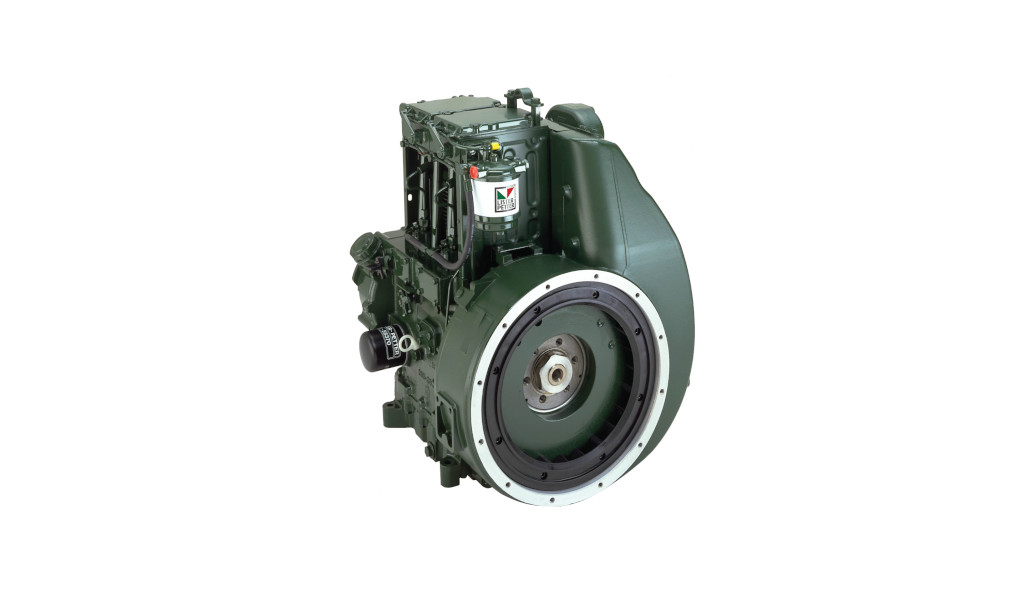

TR Generator Engines TR1

TR Generator Engines TR1

Fixed Speeds
1500 | 1800 r/min

Maximum Power
1500 r/min—5.5-6.1kW
1800 r/min—6.7-7.4kW

Injection
Direct

Description

TR Generator Engines TR1, TR2, TR3

Compact power units for unregulated emissions territories, designed for use in ambient temperatures up to 40ºC. These reliable air-cooled engines reach efficient operating temperature swiftly and can be left unmanned for long periods. Durable and easy to maintain with 250-hour intervals between oil and filter changes (dependent on operating conditions).

  • Air-cooled, direct injection, naturally aspirated 1, 2, or 3-cylinder
  • Can run on biodiesel conforming to ASTM D6751 and EN14214 in concentration of up to 20%
  • Electric start (hand start option)
  • Deep crankcase and cylinder cooling fins
  • Self-bleeding fuel system with filter
  • Mechanical governor
  • Self-regulating plunger-type oil pump, spin-on oil filter
  • 250-hour service intervals
Cooling System Air
Minimum Full Load Speed 1500 r/min
Maximum Full Load Speed 1800 r/min
Number of Cylinders 1L
Bore 98.4 mm
Stroke 101.6 mm
Displacement 0.773 litres
Injection Direct
Aspiration Natural
Starting Hand (electric)
Firing Order 1
Compression Ratio 15.5 : 1
Max Operating Temp 40℃ (104℉)
Weight 153 kg
Length 444 mm
Width 521 mm
Height 683 mm

Additional information

Power Range

0-85 kW

Engine Series

TR

Engine Type

Forklift Drive Engine, G Drive Engine, Pump Drive Engine

Frequency

50Hz, 60Hz

Fuel Type

Diesel
