Fixed Speeds
1500 | 1800 r/min
Maximum Power
1500 r/min—59-65kW
1800 r/min—70-77kW
Injection
Direct
SA423G1, SA427G1, SA430G1, SA432G1, SA432G2, SA435G1, SA441G1, SA441G2

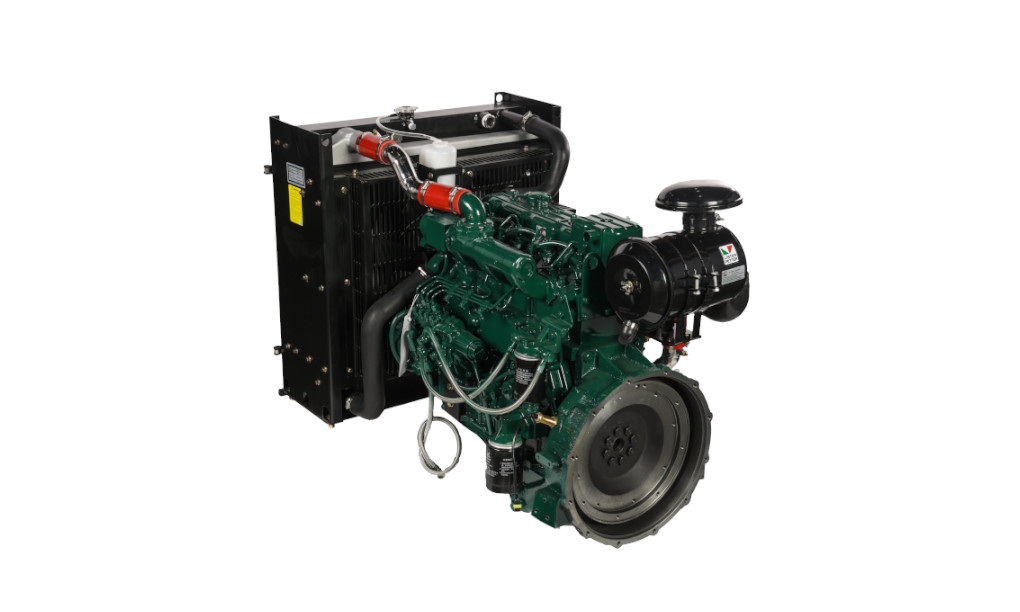

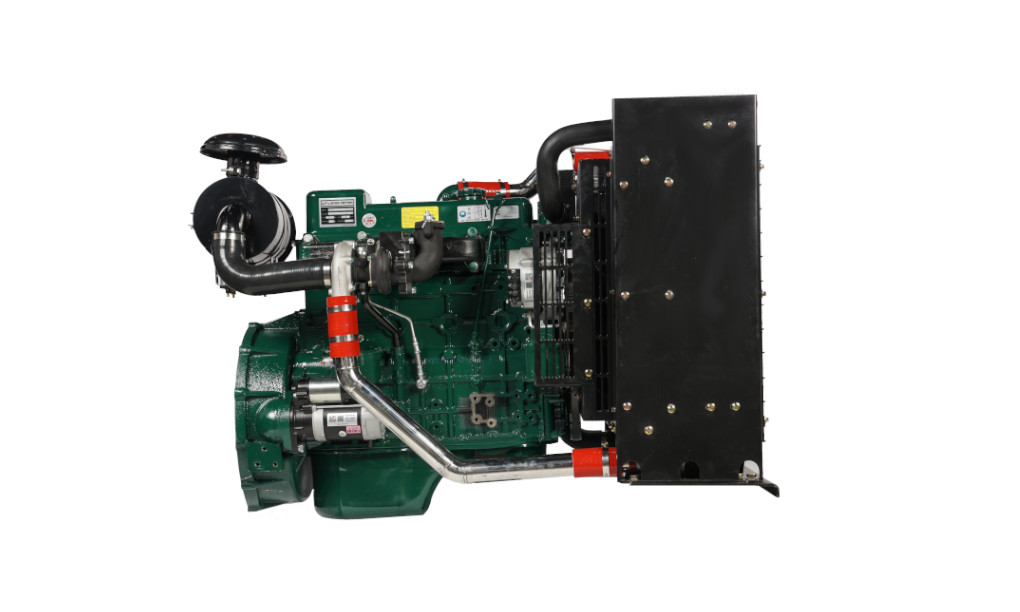

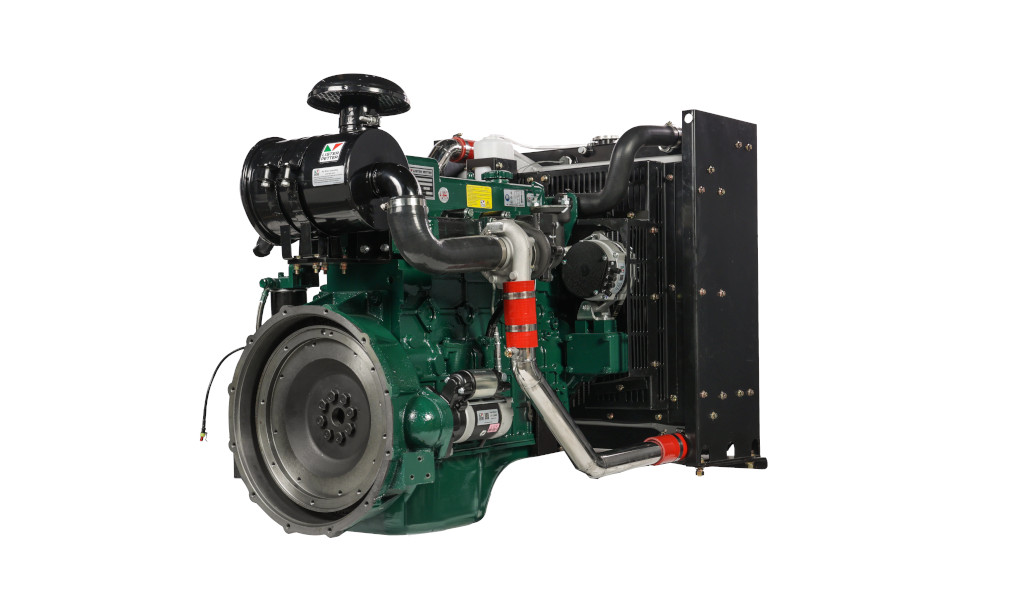

A popular engine in the G-drive sector where reliability and compact design are its greatest assets. This unit’s 16kW to 83kW output and compact proportions make it ideal for portable power generators.
Compact structure
The whole engine is of compact construction and with standard SAE connection, easy for installation, low vibration and noise level.
Compact and high temperature resistance radiator
Can satisfy ambient temperature of 50ºC and has a life span of over 10 years.
Highly reliable
Components are supplied by Lister Petter international purchasing system.
Easy maintenance
With abundant supply of spare parts from Lister Petter global OEM and distributors.
| Cooling System | Liquid |
|---|---|
| Minimum Full Load Speed | 1500 r/min |
| Maximum Full Load Speed | 1800 r/min |
| Number of Cylinders | 4L |
| Bore | 105 mm |
| Stroke | 118 mm |
| Displacement | 4.1 litres |
| Governor | Electronic |
| Injection | Direct |
| Aspiration | Turbo |
| Starting | Electric |
| Firing Order | 1-3-4-2 |
| Compression Ratio | 18.0:1 |
| Max Operating Temp | 52℃(122℉) |
| Weight | 418 kg |
| Length | 1233 mm |
| Width | 770 mm |
| Height | 988 mm |
| Emissions | Stage II |
|---|---|
| Engine Series | Starlite |
| Fuel Type | Gas |
| Engine Type | G Drive Engine |
| Power Range | 0-85 kW |
