Fixed Speeds
1500 | 1800 r/min
Maximum Power
1500 r/min—49-54kW
1800 r/min—59-65kW
Injection
Direct
SA423G1, SA427G1, SA430G1, SA432G1, SA432G2, SA435G1, SA441G1, SA441G2

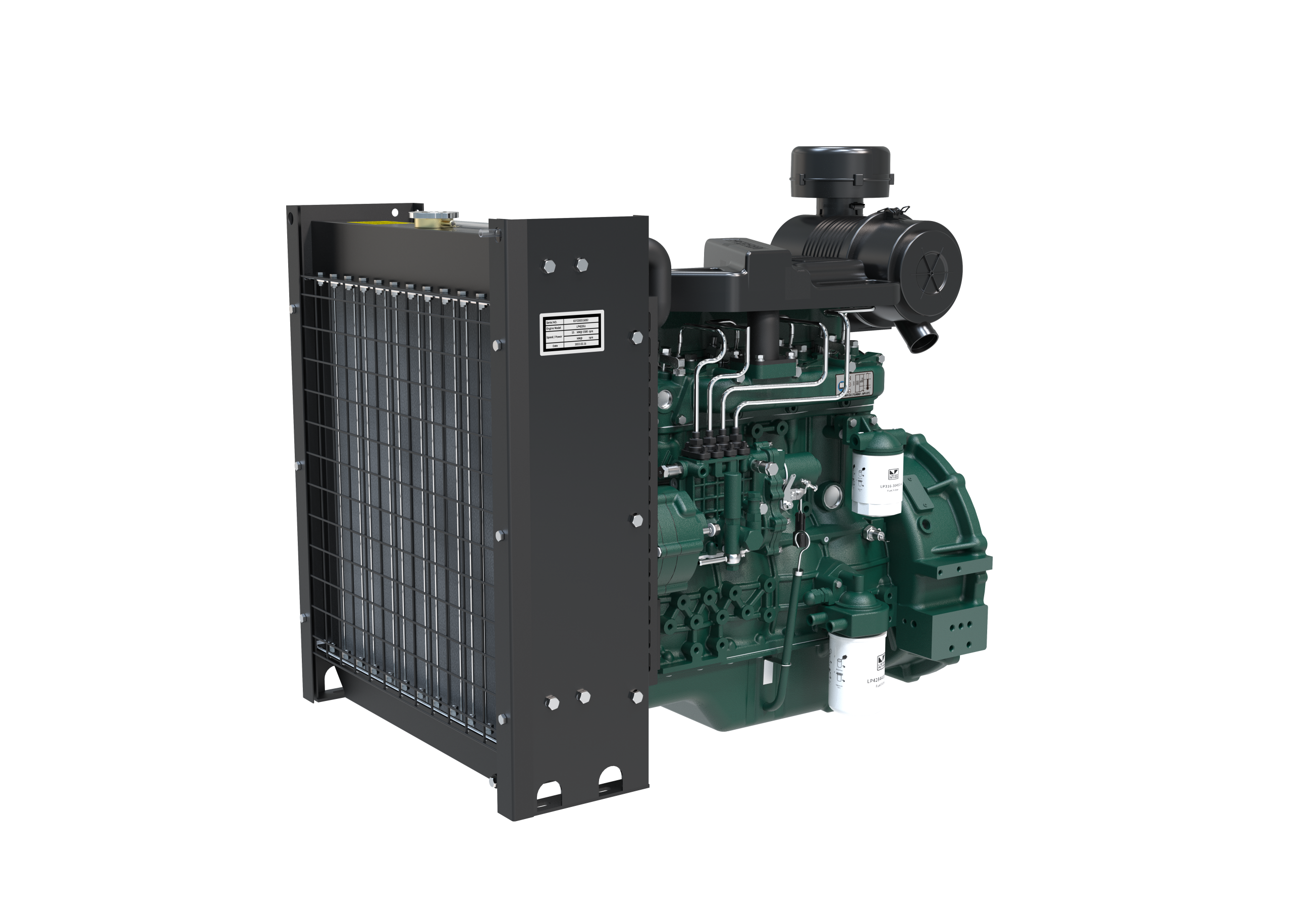

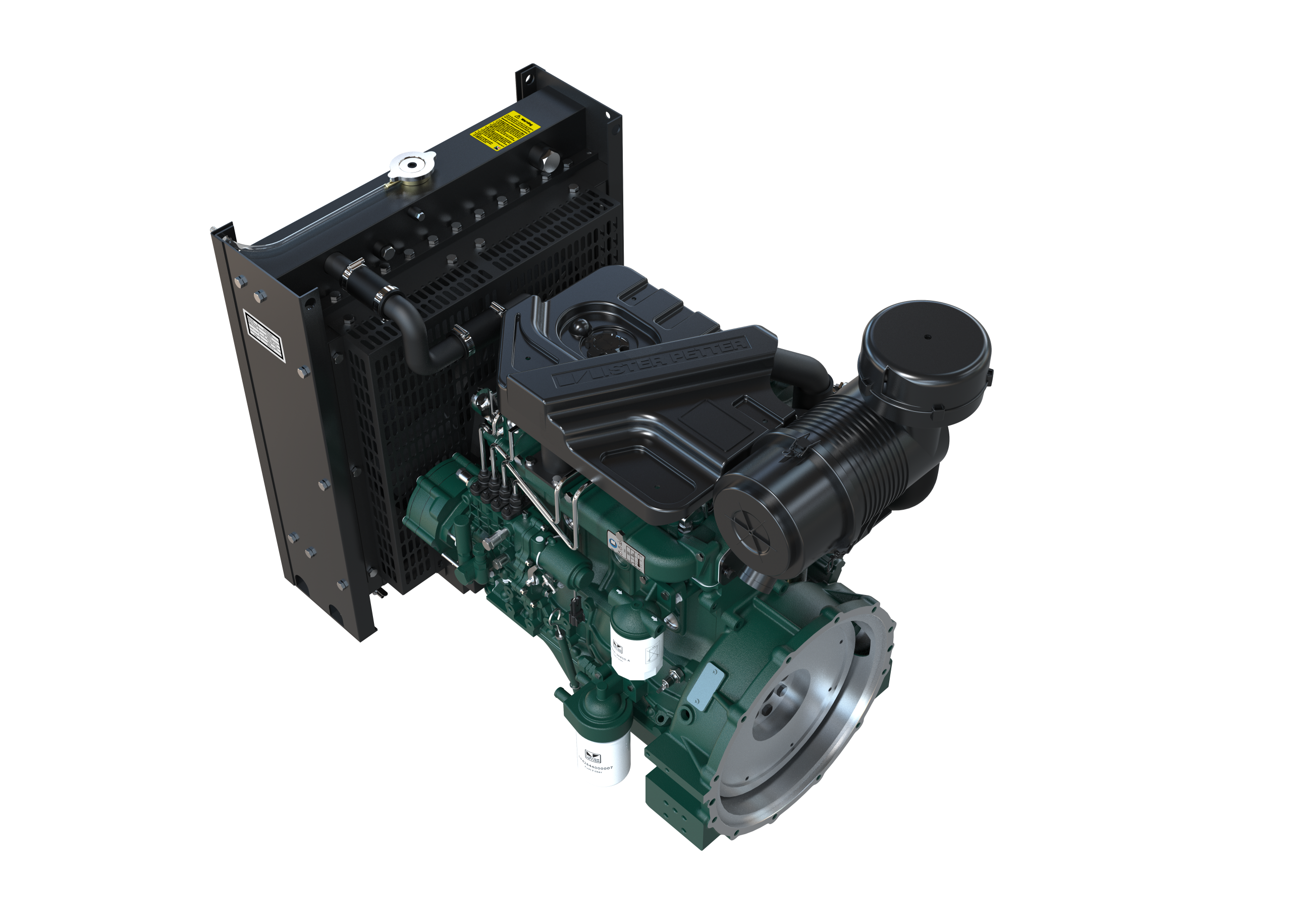

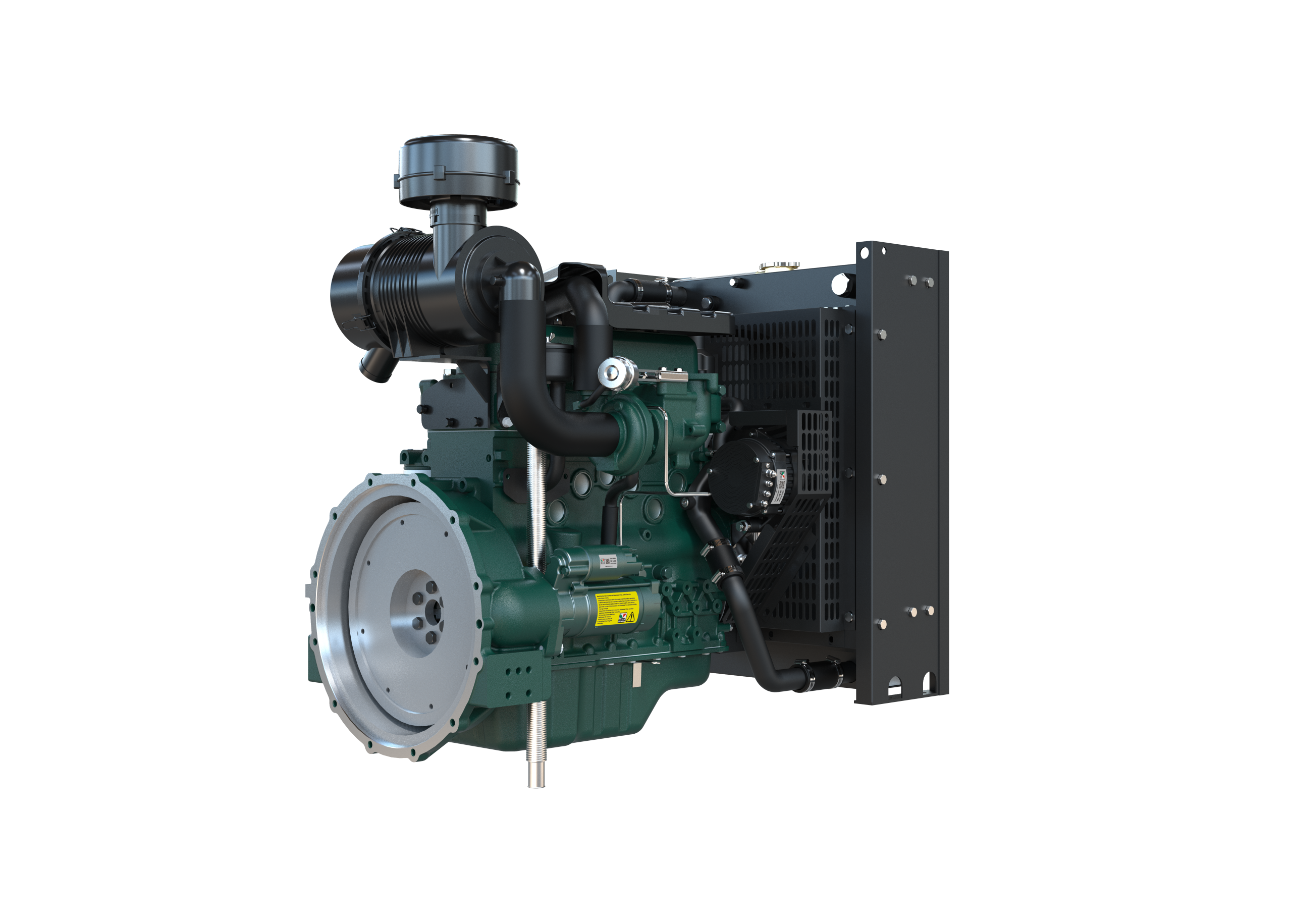

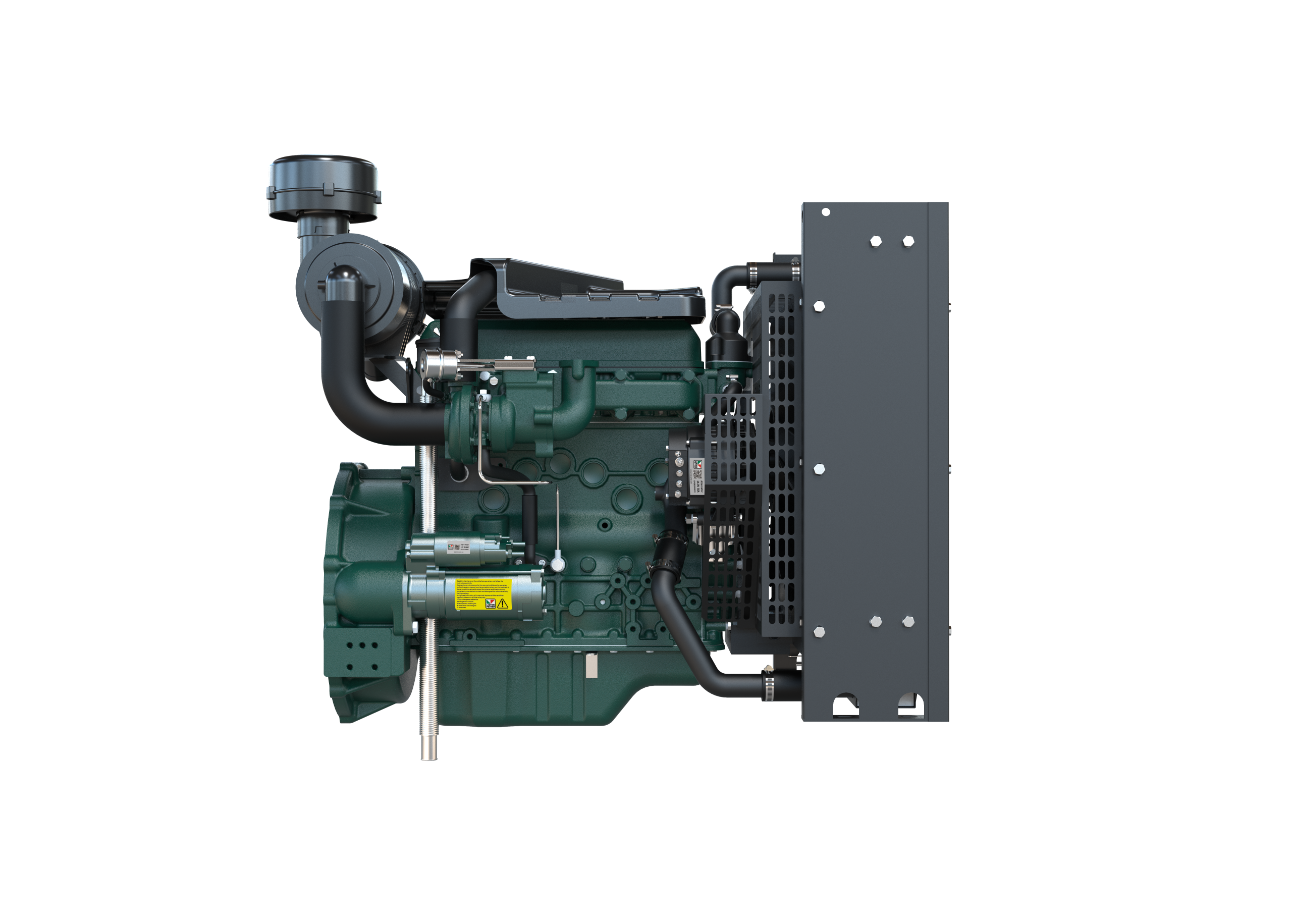

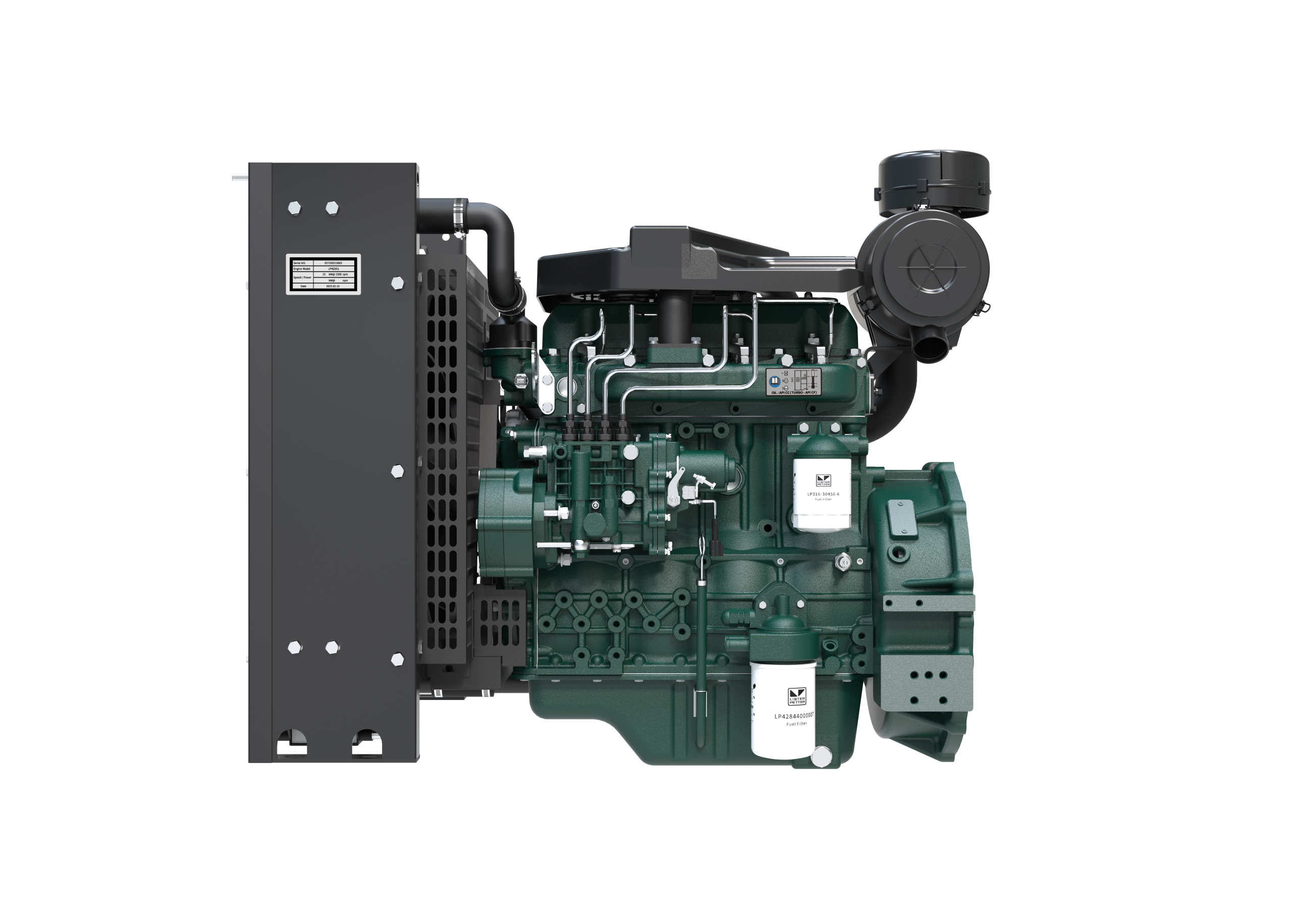

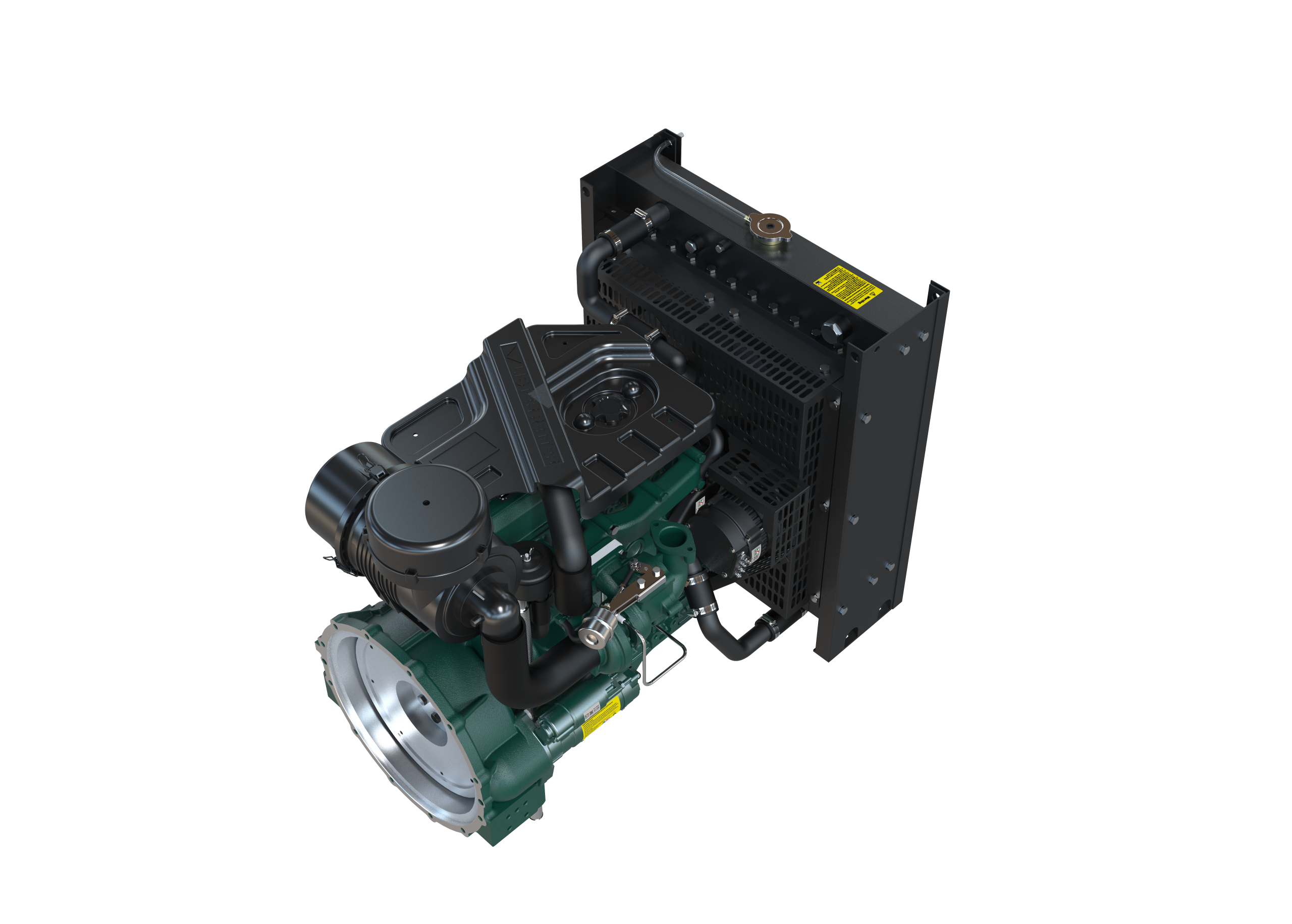

A popular engine in the G-drive sector where reliability and compact design are its greatest assets. This unit’s 16kW to 83kW output and compact proportions make it ideal for portable power generators.
Compact structure
The whole engine is of compact construction and with standard SAE connection, easy for installation, low vibration and noise level.
Compact and high temperature resistance radiator
Can satisfy ambient temperature of 50ºC and has a life span of over 10 years.
Highly reliable
Components are supplied by Lister Petter international purchasing system.
Easy maintenance
With abundant supply of spare parts from Lister Petter global OEM and distributors.
| Cooling System | Liquid |
|---|---|
| Minimum Full Load Speed | 1500 r/min |
| Maximum Full Load Speed | 1800 r/min |
| Number of Cylinders | 4L |
| Bore | 98 mm |
| Stroke | 115 mm |
| Displacement | 3.5 litres |
| Governor | Electronic |
| Injection | Direct |
| Aspiration | Turbo |
| Starting | Electric |
| Firing Order | 1-3-4-2 |
| Compression Ratio | 18.5:1 |
| Max Operating Temp | 52℃(122℉) |
| Weight | 324 kg |
| Length | 1063 mm |
| Width | 670 mm |
| Height | 945 mm |
| Emissions | Stage II |
|---|---|
| Engine Series | Starlite |
| Engine Type | G Drive Engine |
| Fuel Type | Gas |
| Power Range | 0-85 kW |
