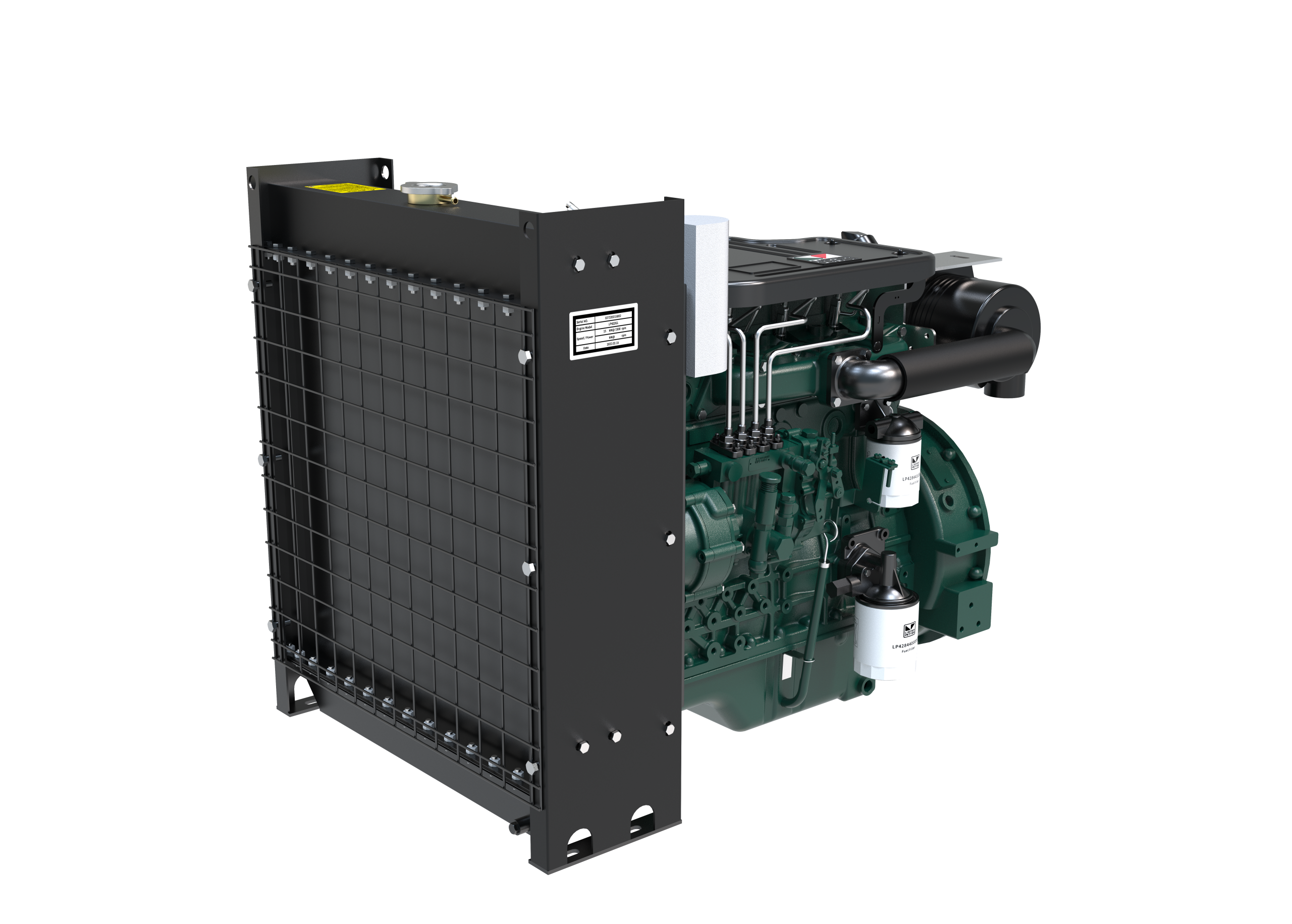

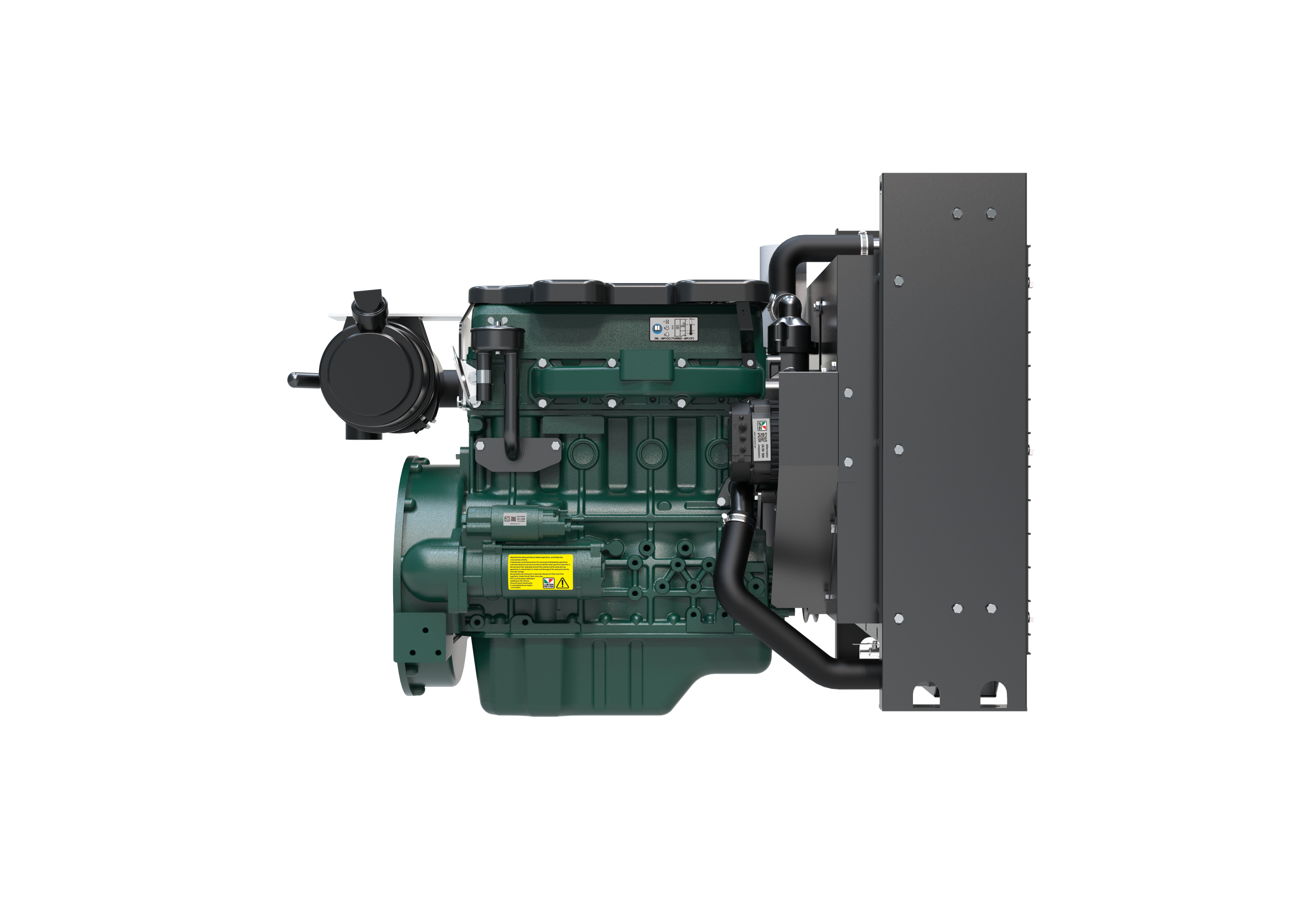

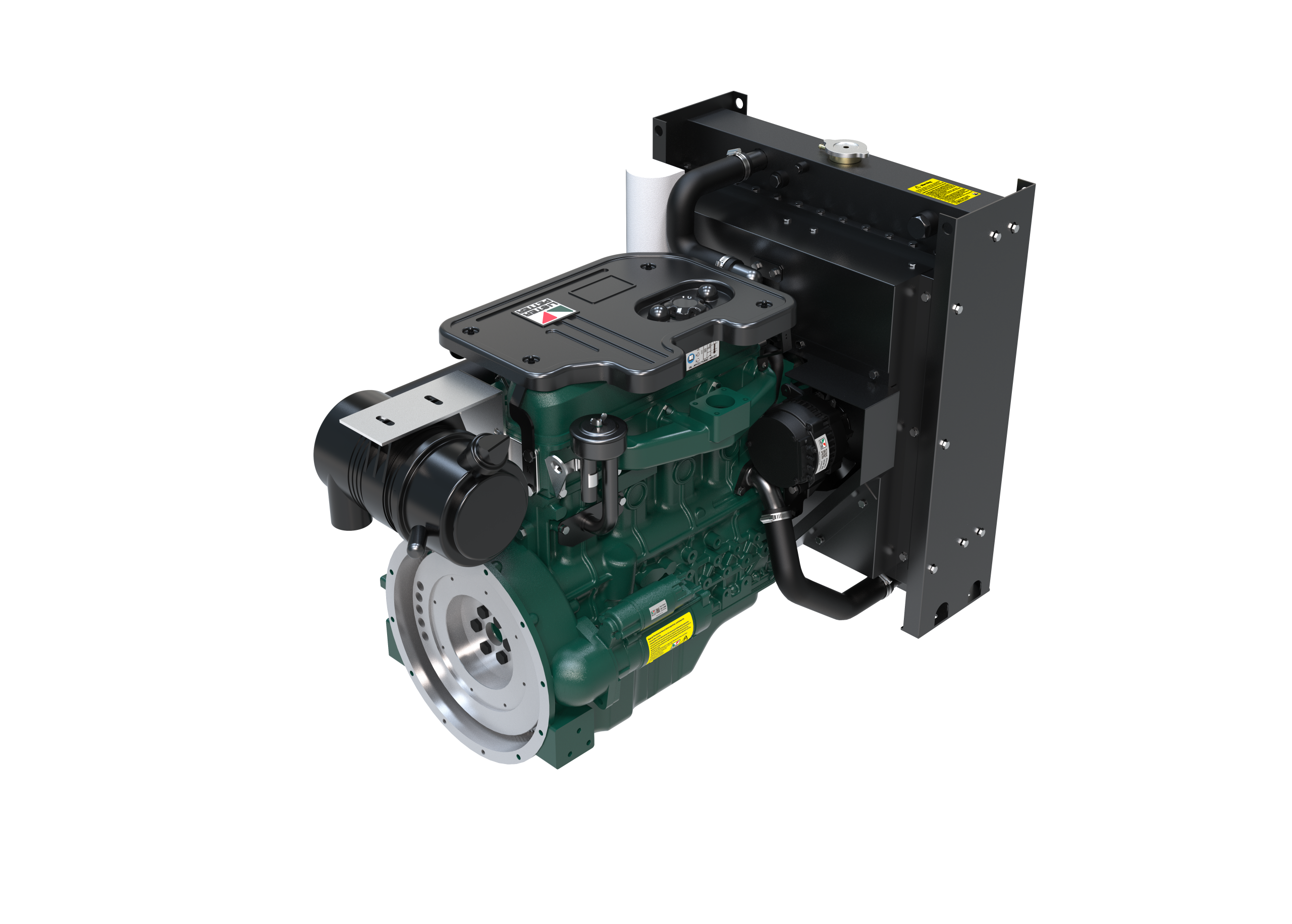

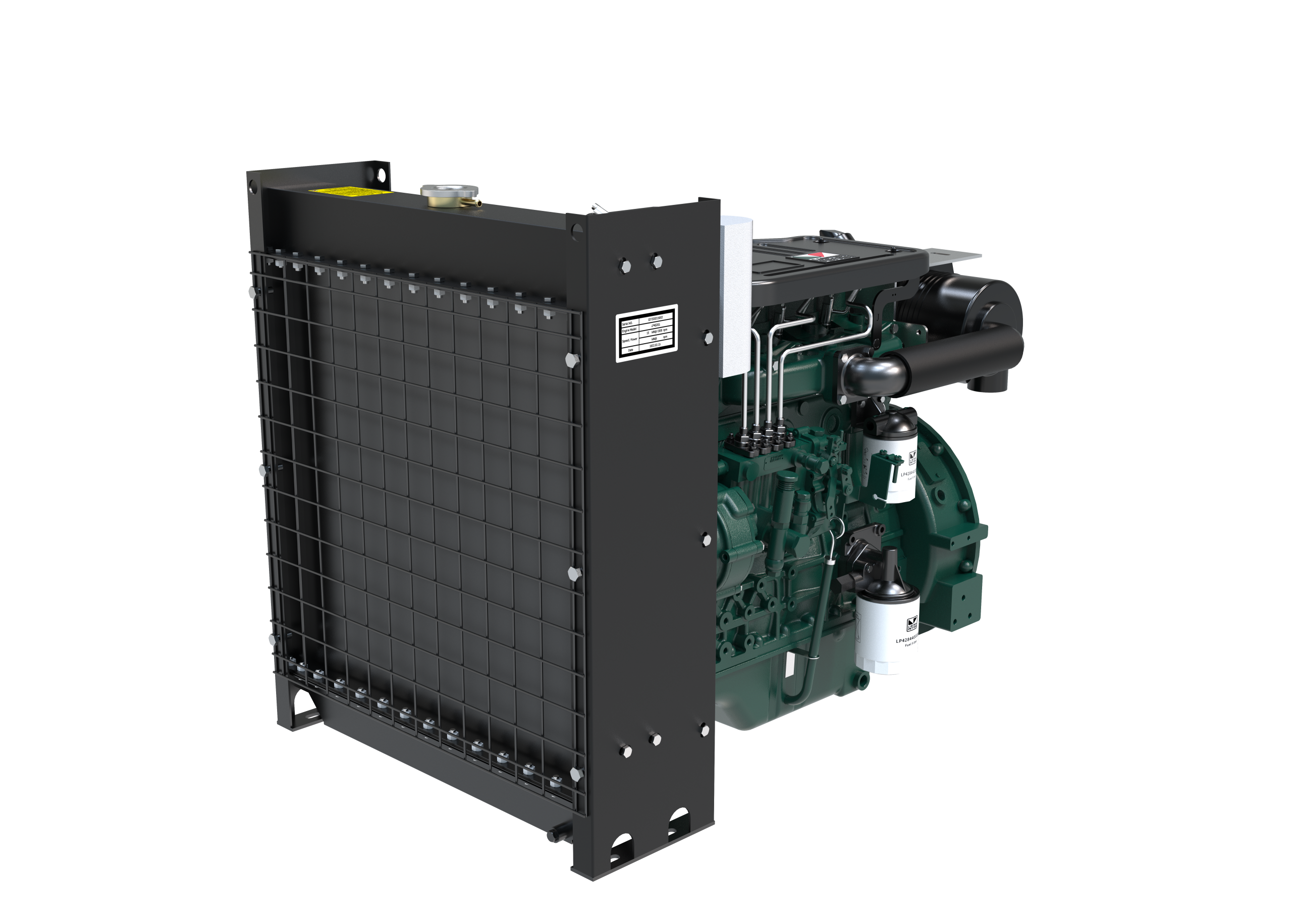

Starlite SA427G1

For 150 years, Lister Petter has led the field in design and manufacturing of high-performance diesel engines
Starlite SA427G1

Starlite SA427G1

Fixed Speeds
1500 | 1800 r/min

Maximum Power
1500 r/min—22-24kW
1800 r/min—26-29kW

Injection
Direct

Description

SA423G1, SA427G1, SA430G1, SA432G1, SA432G2, SA435G1, SA441G1, SA441G2

A popular engine in the G-drive sector where reliability and compact design are its greatest assets. This unit’s 16kW to 83kW output and compact proportions make it ideal for portable power generators.

  • Low levels of NVH (Noise, Vibration, Harshness)
  • High performance water-cooling system operates at ambient temperatures of up to 50ºC
  • Compact design
  • Dependable and easily maintained
  • Full-service back-up from Lister Petter service outlets Worldwide

Compact structure
The whole engine is having compact construction and with standard SAE connection, easy for installation, Low vibration and noise level

Compact and high temperature resistance radiator
Can satisfy ambient temperature of 50 degree C and having a life span of over 10 years

Highly reliable
Component is supplied by Lister Petter international purchasing system

Easy maintenance
With abundant supply of spare parts from Lister Petter global OEM and distributors

Cooling System Liquid
Minimum Full Load Speed 1500 r/min
Maximum Full Load Speed 1800 r/min
Number of Cylinders 4L
Bore 90 mm
Stroke 105 mm
Displacement 2.7 litres
Governor Electronic
Injection Direct
Aspiration Natural
Starting Electric
Firing Order 1-3-4-2
Compression Ratio 18.5 : 1
Max Operating Temp 52℃(122℉)
Weight 297 kg
Length 1155 mm
Width 670 mm
Height 845 mm

Additional information

Emissions

Stage II

Engine Series

Starlite

Engine Type

G Drive Engine

Fuel Type

Gas

Power Range

0-85 kW
