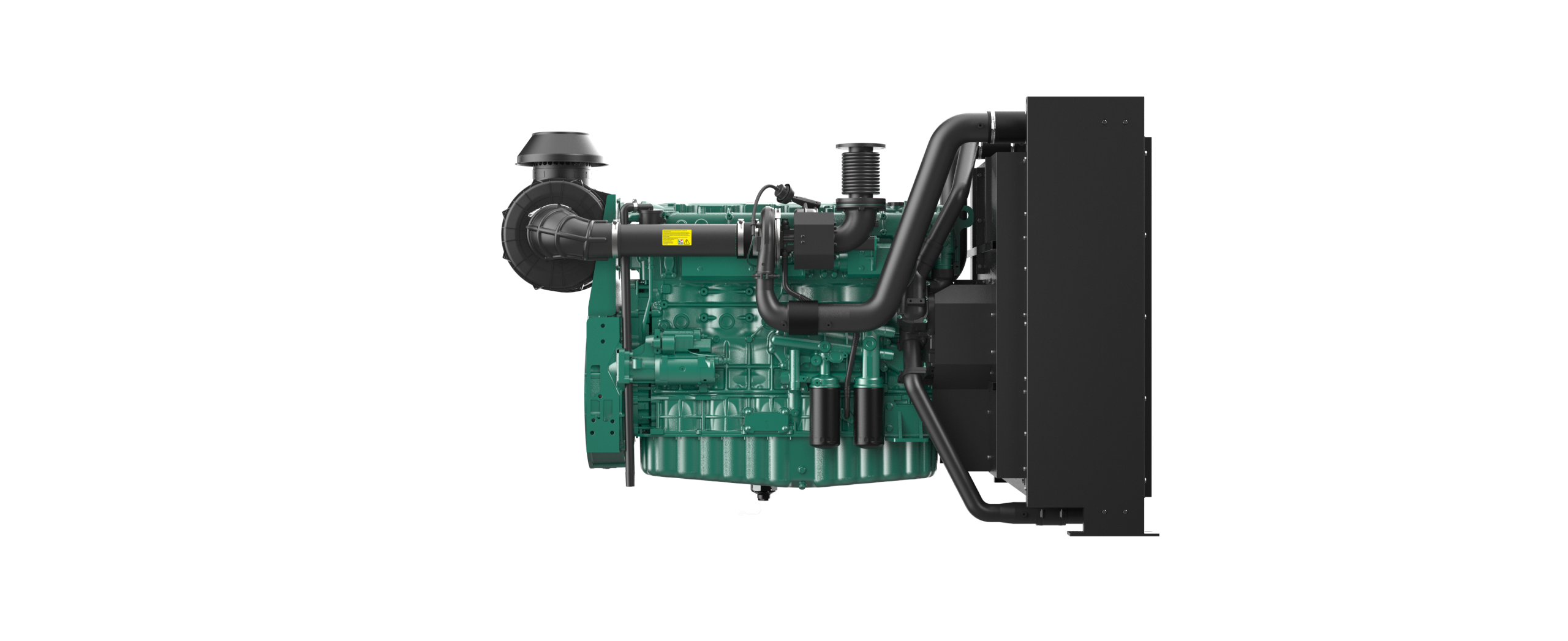

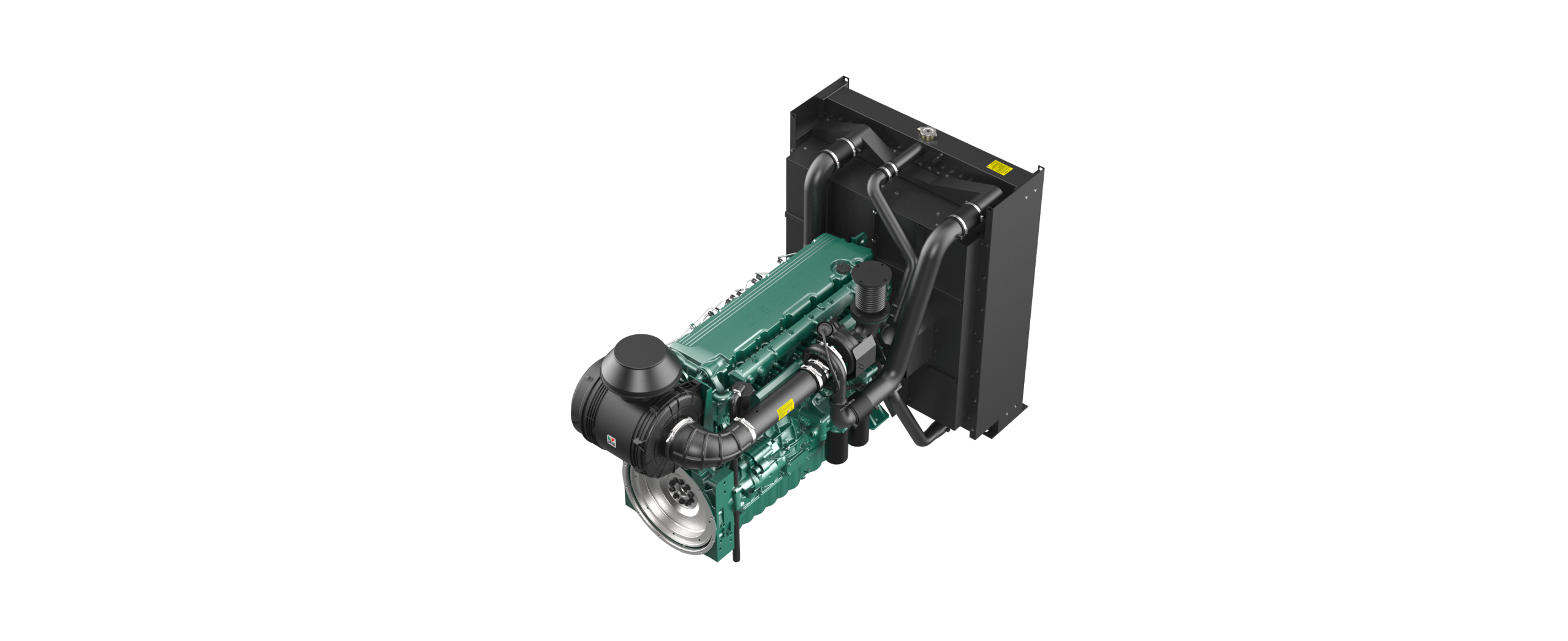

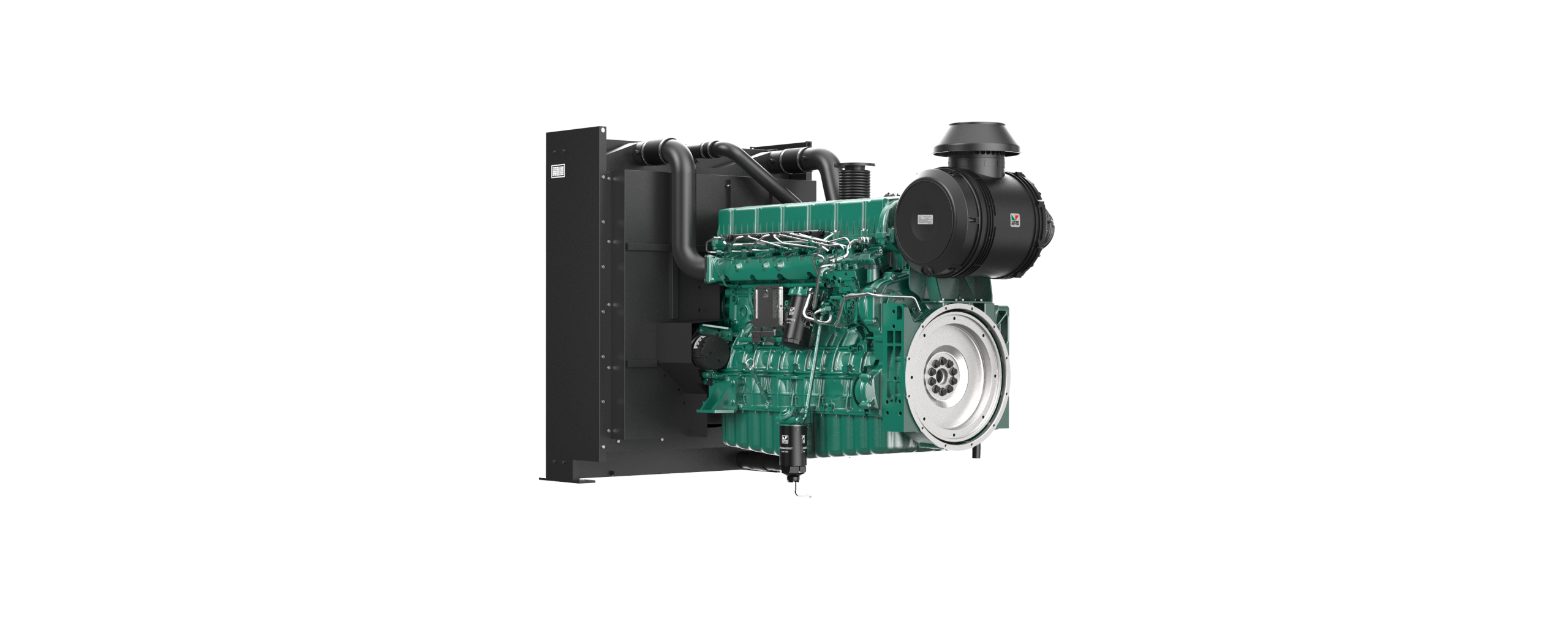

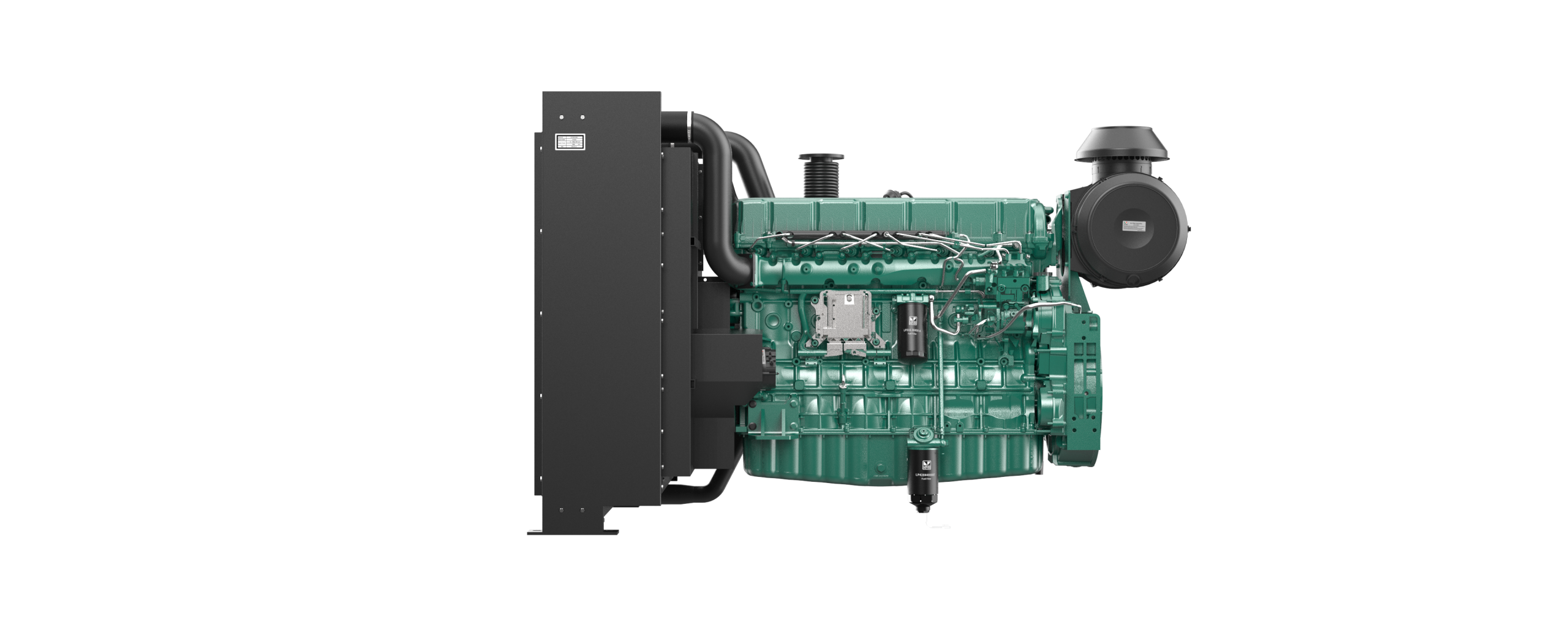

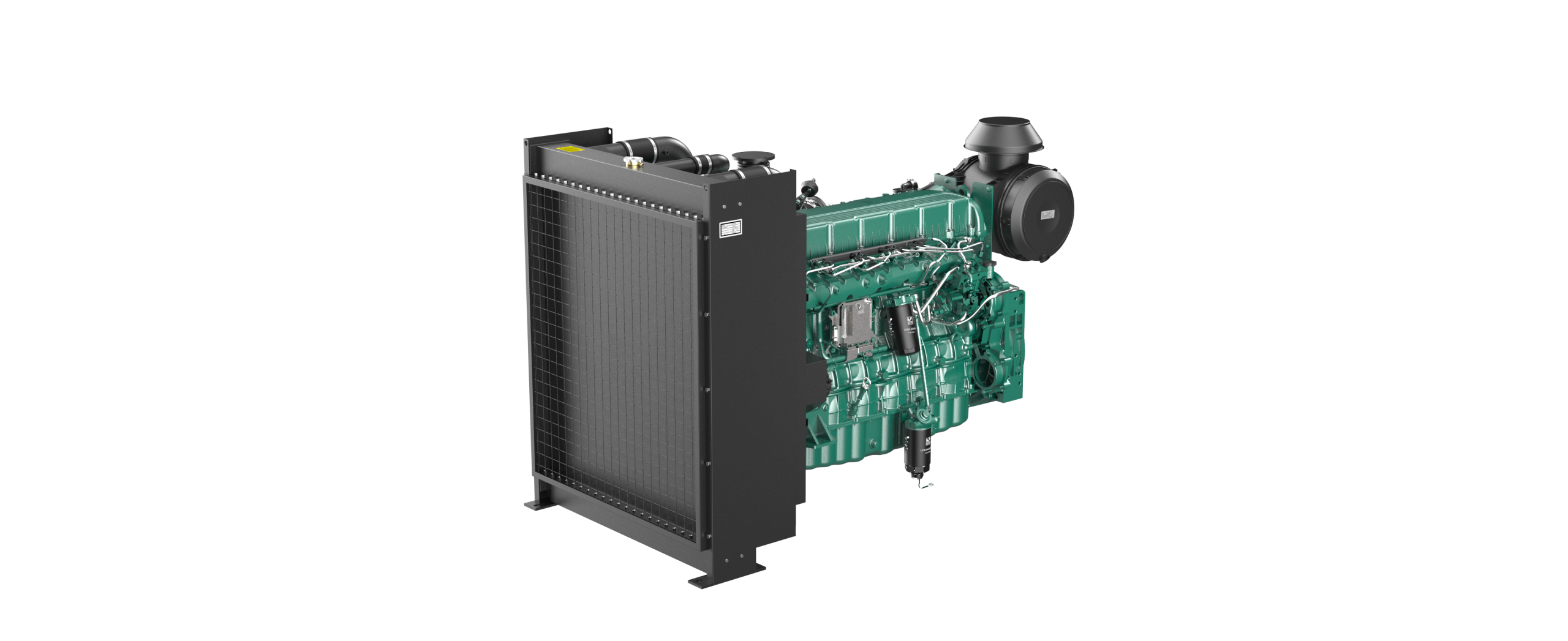

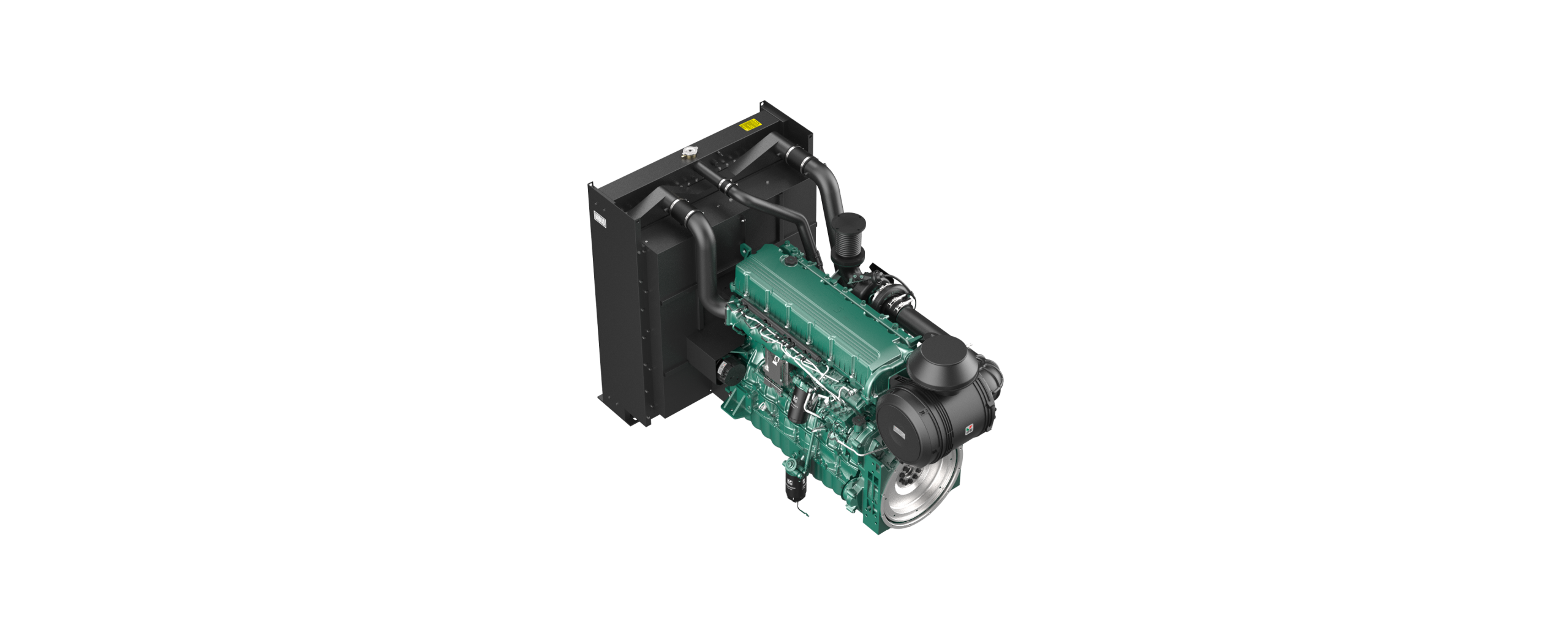

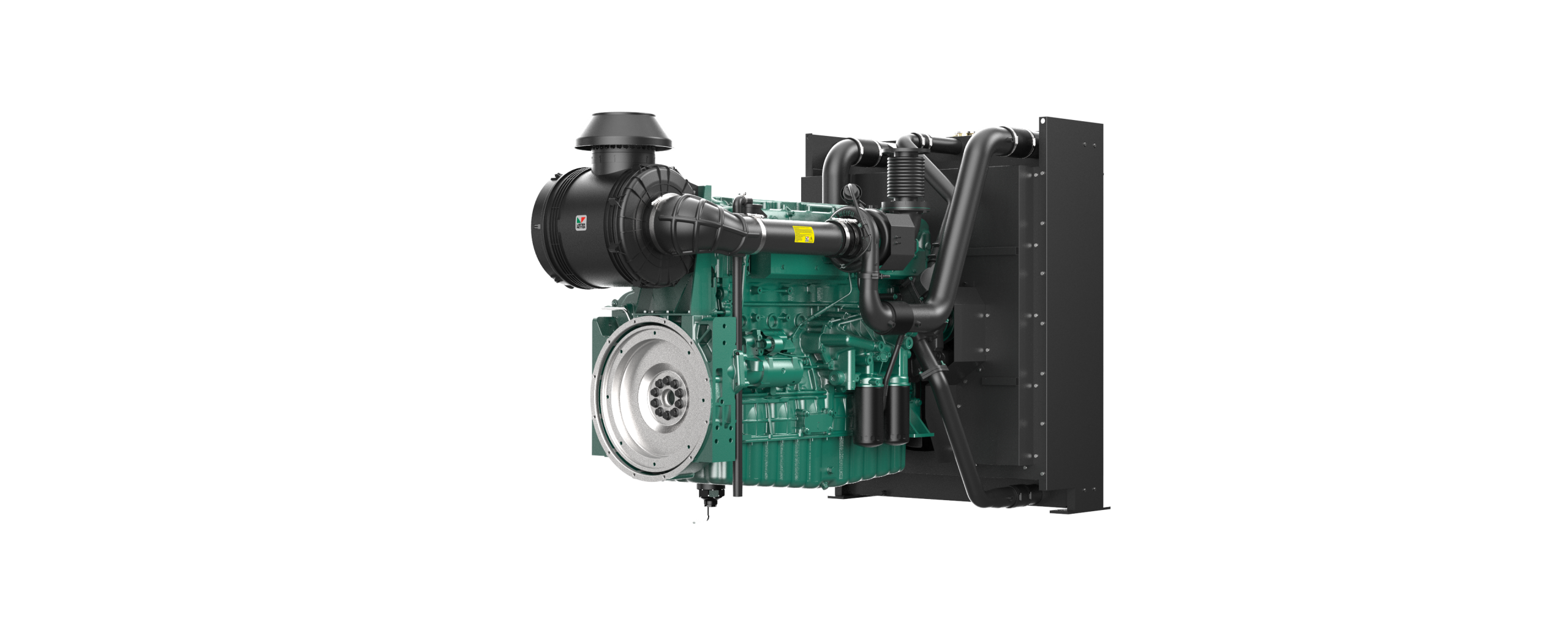

Venus LP613G1

For 150 years, Lister Petter has led the field in design and manufacturing of high-performance diesel engines
Venus LP613G1

Venus LP613G1

Fixed Speeds
1500 | 1800 r/min

Maximum Power
1500 r/min—339-373kW
1800 r/min—368-405kW

Injection
Direct

Description

Venus

Models: LP443G1, LP443G2, LP443G3, LP443G4, LP443G5, LP443G6, LP665G1, LP665G2, LP665G3, LP689G1, LP689G2, LP689G3, LP612G1, LP612G2, LP613G1, LP613G2

One of Lister Petter’s leading engines, the Venus series comes with a mechanical or electronic governor option.
Tried and trusted technology offers easy maintenance and in-field servicing, while its compact design allows cost-effective gen-set packaging.

  • Dual frequency operation at 50Hz or 60Hz
  • High performance cooling system operates in ambient temperatures of up to 50 °C
  • Cold starts down to minus 40 °C
  • No altitude derating up to 3,500 m
  • Easy, cost-effective servicing with full global backup in parts and expertise from Lister Petter service outlets
  • Mechanical and electronic governor variants
  • 500-hour service intervals (depending on operating conditions)

Technical Specifications

Cooling System Liquid
Minimum Full Load Speed 1500 rpm
Maximum Full Load Speed 1800 rpm
Number of Cylinders 6L
Bore 130 mm
Stroke 161 mm
Displacement 12.8 L
Governor Electronic Governor
Injection Direct
Aspiration Turbo & Air to Air Intercooler
Starting Electric
Firing Order 1-3-4-2
Compression Ratio 17:1
Max Operating Temp 52 °C (122 ℉)
Weight 1,346 kg
Length 2,259 mm
Width 1,155 mm
Height 1,488 mm

Additional information

Emissions

Stage II

Engine Series

Venus

Fuel Type

Gas

Power Range

201-500 kW
