Fixed Speeds
1500 | 1800 r/min
Maximum Power
1500 r/min—78-86kW
1800 r/min—86-95kW
Injection
Denso Common Rail with ECU
Venus Max – 78kW – 308kW Denso fuel system
LP443EG3, LP443EG4, LP443EG5, LP443EG6, LP665EG1, LP665EG2, LP665EG3, LP665EG4, LP689EG1, LP689EG2, LP689EG3, LP689EG4, LP612EG1, LP612EG2, LP612EG3, LP613EG1, LP613EG2, LP613EG3, LP613EG4

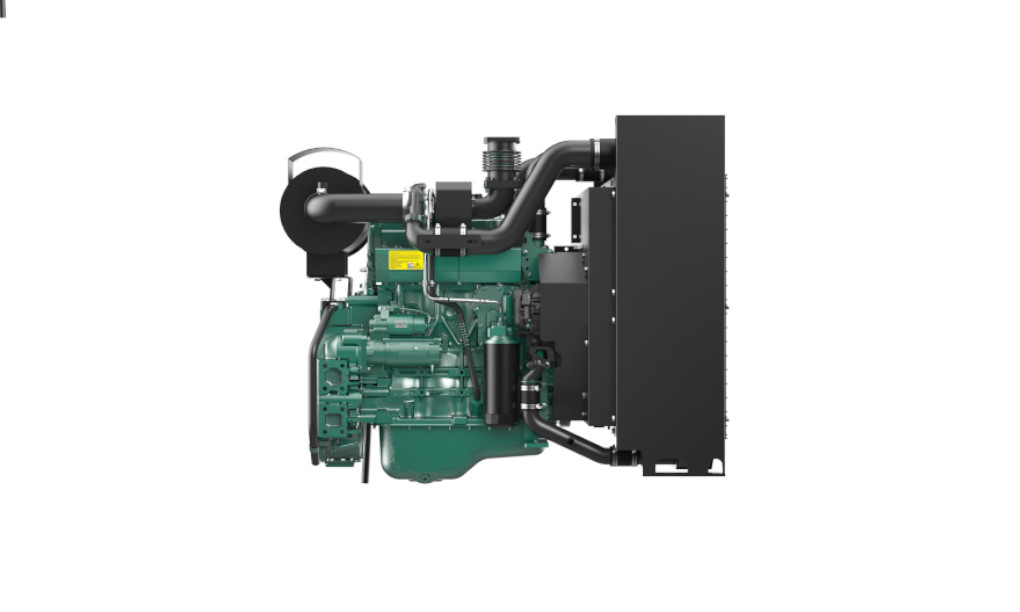

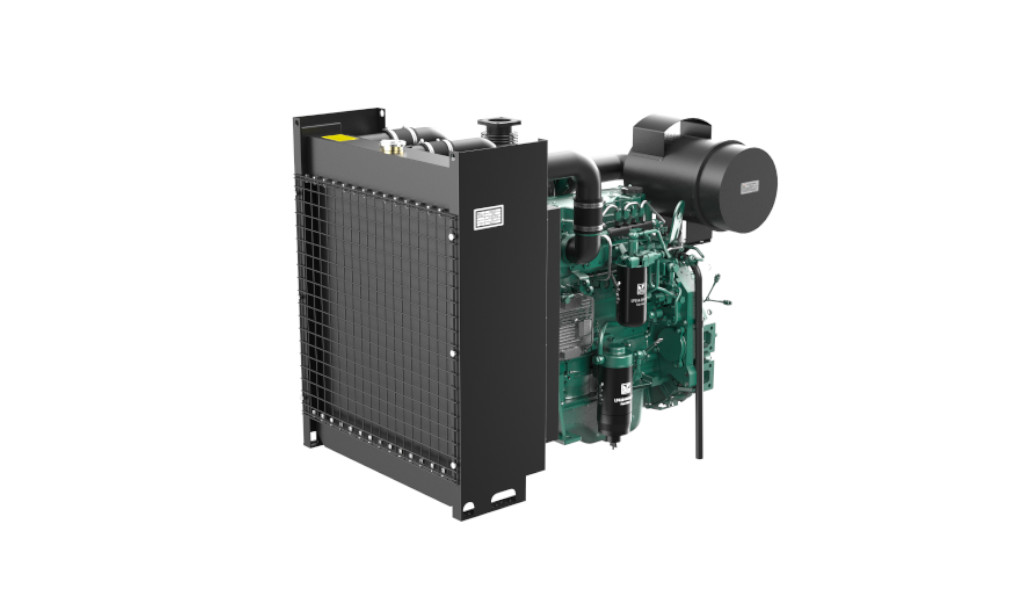

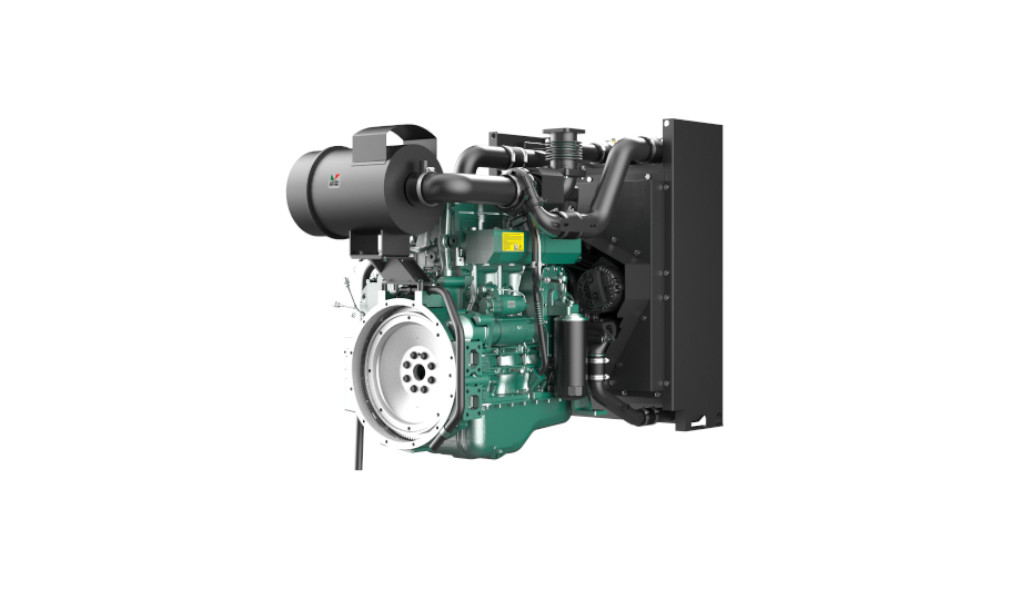

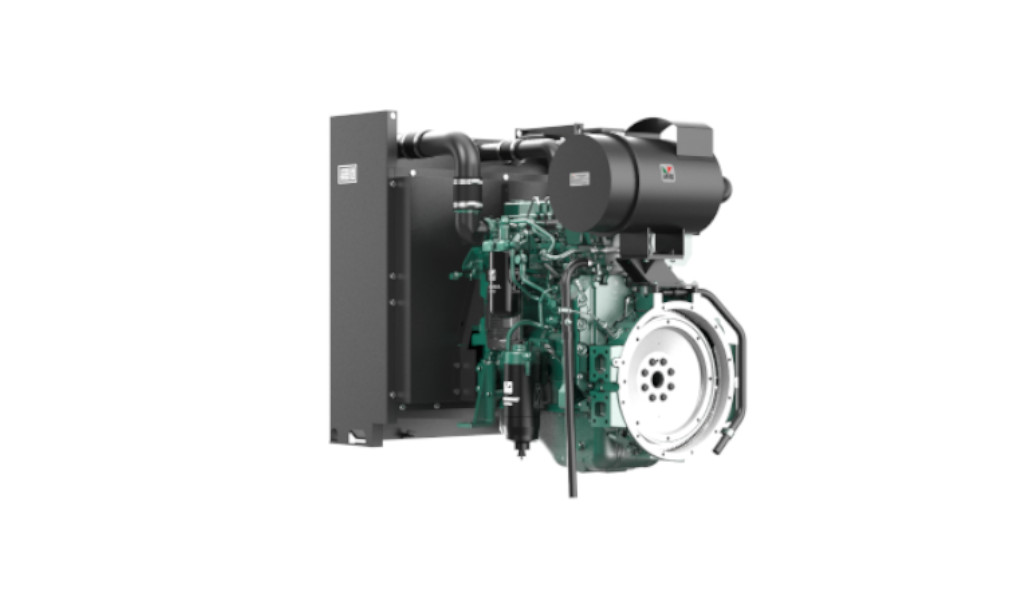

The VENUS MAX engines produce power in the 78kW to 308kW range. The robust and versatile engine offers Denso high pressure common rail fuel injection with ECU control. High flow oil filters, and cyclone air filter system ensure the engine is always in prime condition. The Venus Max range complies with Stage III emission regulations.
| Cooling System | Liquid |
|---|---|
| Minimum Full Load Speed | 1500 r/min |
| Maximum Full Load Speed | 1800 r/min |
| Number of Cylinders | 4L |
| Bore | 105 mm |
| Stroke | 124 mm |
| Displacement | 4.3 litres |
| Injection | Denso Common Rail with ECU |
| Aspiration | Turbo & Air to Air Intercooler |
| Starting | Electric |
| Firing Order | 1-3-4-2 |
| Compression Ratio | 16:1 |
| Max Operating Temp | 52℃（122℉） |
| Weight | 534 kg |
| Length | 1056 mm |
| Width | 774 mm |
| Height | 1079 mm |
| Emissions | Stage III |
|---|---|
| Engine Series | Venus Max |
| Fuel Type | Gas |
| Power Range | 0-85 kW, 86-200 kW |
