LP311EVG1, LP322EVG1, LP322EVG2, LP430EVG2, LP311EG1, LP429EG1, LP432EG2, LP435EG2

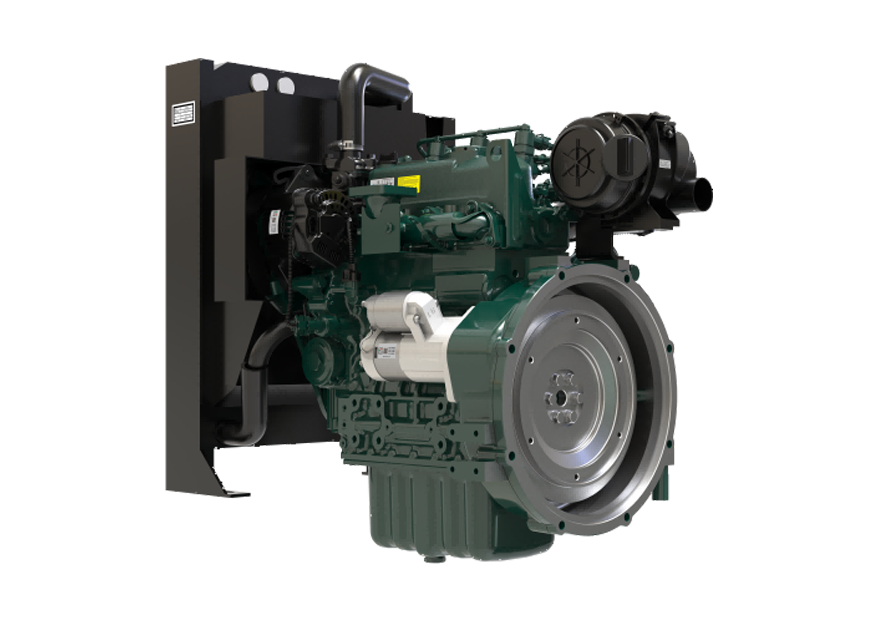

The MERCURY MAX series, with ratings from 11 kW to 62kW available in 1500rpm and 1800rpm. This is the first of the Stage V compliant engines in the range for Lister Petter. The engine uses a Bosch common rail fuel injection equipment and ECU to control fuel delivery and to achieve Stage V emissions compliance. The 3-cylinder 1.1 litre engine offers exceptional power in a compact package.
| Cooling System | Liquid |
|---|---|
| Minimum Full Load Speed | 1500 r/min |
| Maximum Full Load Speed | 1800 r/min |
| Number of Cylinders | 3L |
| Bore | 78 mm |
| Stroke | 78.4 mm |
| Displacement | 1.1 litres |
| Injection | BOSCH Common Rail with ECU |
| Aspiration | Natural |
| Starting | Electric |
| Firing Order | 1-3-2 |
| Compression Ratio | 18.0:1 |
| Max Operating Temp | 52℃(122℉) |
| Weight | 130 kg |
| Length | 810 mm |
| Width | 470 mm |
| Height | 708 mm |
| Emissions | Stage III |
|---|---|
| Engine Series | Mercury Max |
| Fuel Type | Gas |
| Power Range | 0-85 kW |
