CLASIFICACIÓN

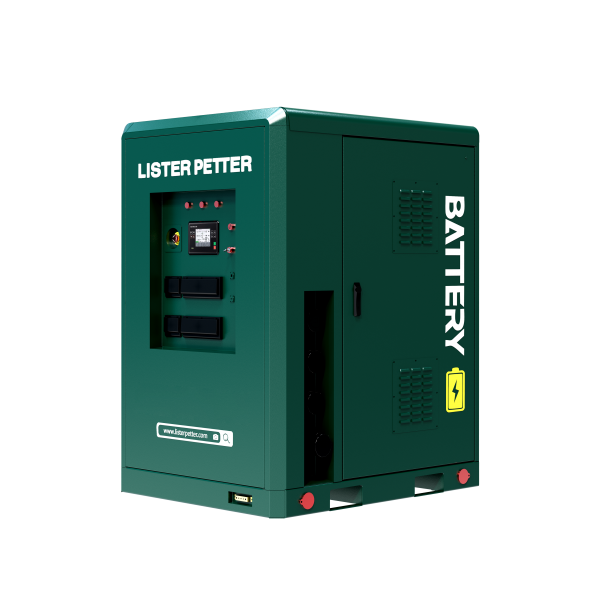

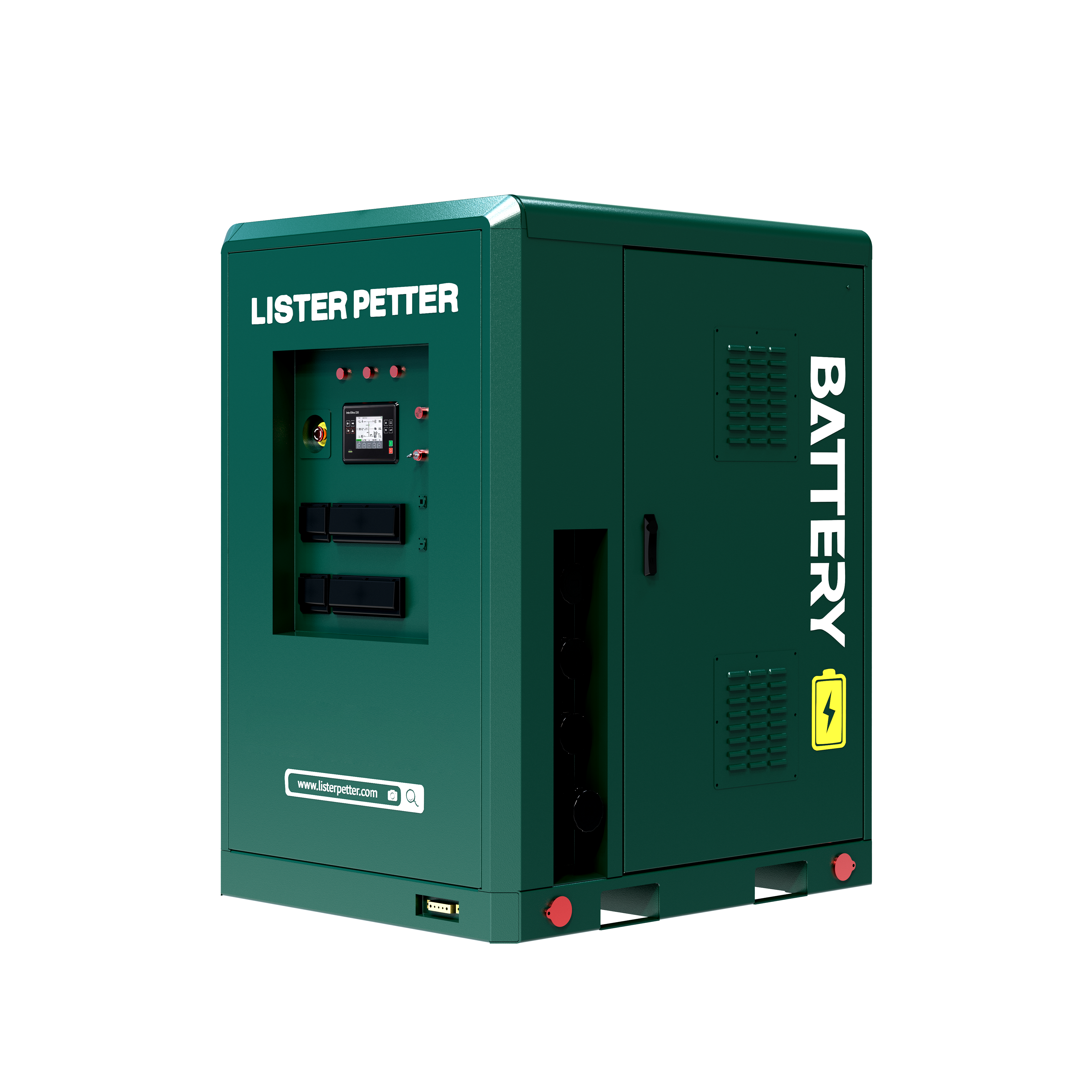

LP50BESS



Battery Energy Storage System can be used independently to achieve zero noise and emissions. The system can also be combined with Engine Power or any kind of renewable sources such as solar, wind power to offer the complete hybrid solution. The system can be optimized further for the electrical system to control CO2 emissions and noise, achieving better fuel consumption, andavoiding low-load operation of the engine driven generator. This makes the BESS a perfect hybrid operating system, driving towards a cleaner future for the next generations.

AC Rated Power

25kW

AC Voltage

400V

Frequency

50/60

THD

≤3%

PF

≥0.99

DC System Capacity

50kWh

Operating Voltage

204.8

Max C-rate

0.5CP

Efficiency

≥98%

Accuracy

≤±1%

Overall Noise

<75 dBA

Ventilation

Forced Draft

Pyhsical Weight(kg)

1250KG

Dimension W*H*D

1350mm*1700mm*1100mm

Ingress Protection

IP54

Ambient Condition

-20~50℃,3000MASL

Communication

RS485, Ethemet, CAN

Protocol

Modbus TCP/RTU, IEC104

BMS

Avaliable

Fire Protection

Prefluoro
