Fixed Speed
2600 r/min
Мощность двигателя
73.5kW

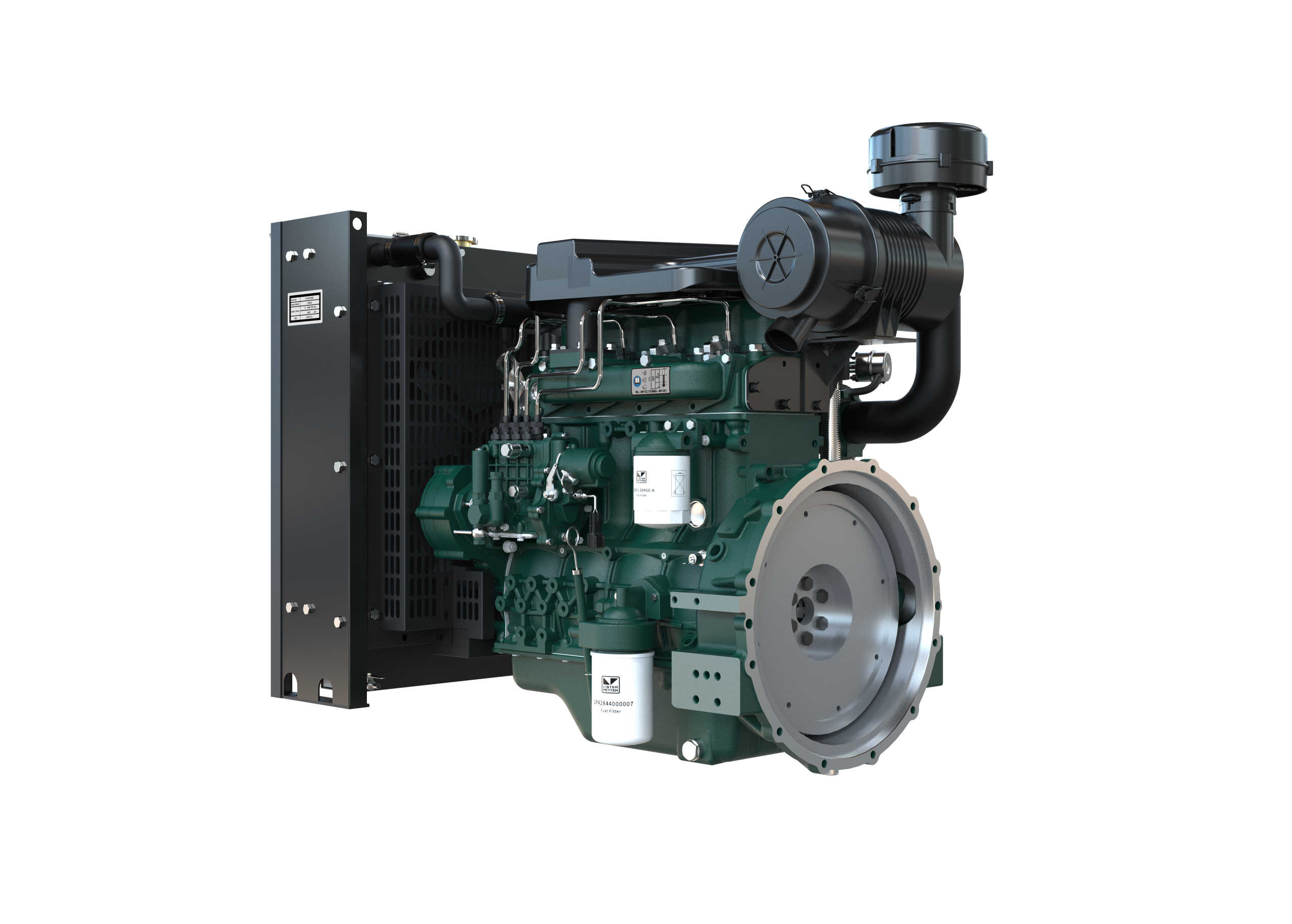

Industrial Engine
EU Stage V: LP311EVi1, LP311EVi2, LP322EVi1, LP322EVi2, LP430EVi1
Stage II: SA315i2, SA432i1, SA427i1, SA427i2, SA432i1, SA432i4, SA432i2, SA432i3, SA432i5, SA435i1
| Engine Power (kW) | 73.5 |
|---|---|
| Engine Power (HP) | 98.6 |
| Speed (rpm) | 2600 |
| No. of Cylinders | 4 |
| Смещение | 3.2 |
| Bore (mm) | 98 |
| Stroke (mm) | 115 |
| SAE | IV-7.5 |
| Fuel System | Mechanical |
| Аспирация | Турбо |
| Coolling System | Water Cooling |
| Heat Rejection (kw) | 50.6 |
| Air Intake Flow (m³/h) | 480.5 |
| Max Intake Air Restriction | 4 kpa |
| Max Exhaust Back Pressure | 10 kpa |
| Fan Size | F490 |
| Выбросы | Этап II |
| Серия двигателей | Industrial Engine |
|---|---|
| Тип топлива | Дизель |
| Диапазон мощности | 0–85 кВт |
| Выбросы | Этап II |
