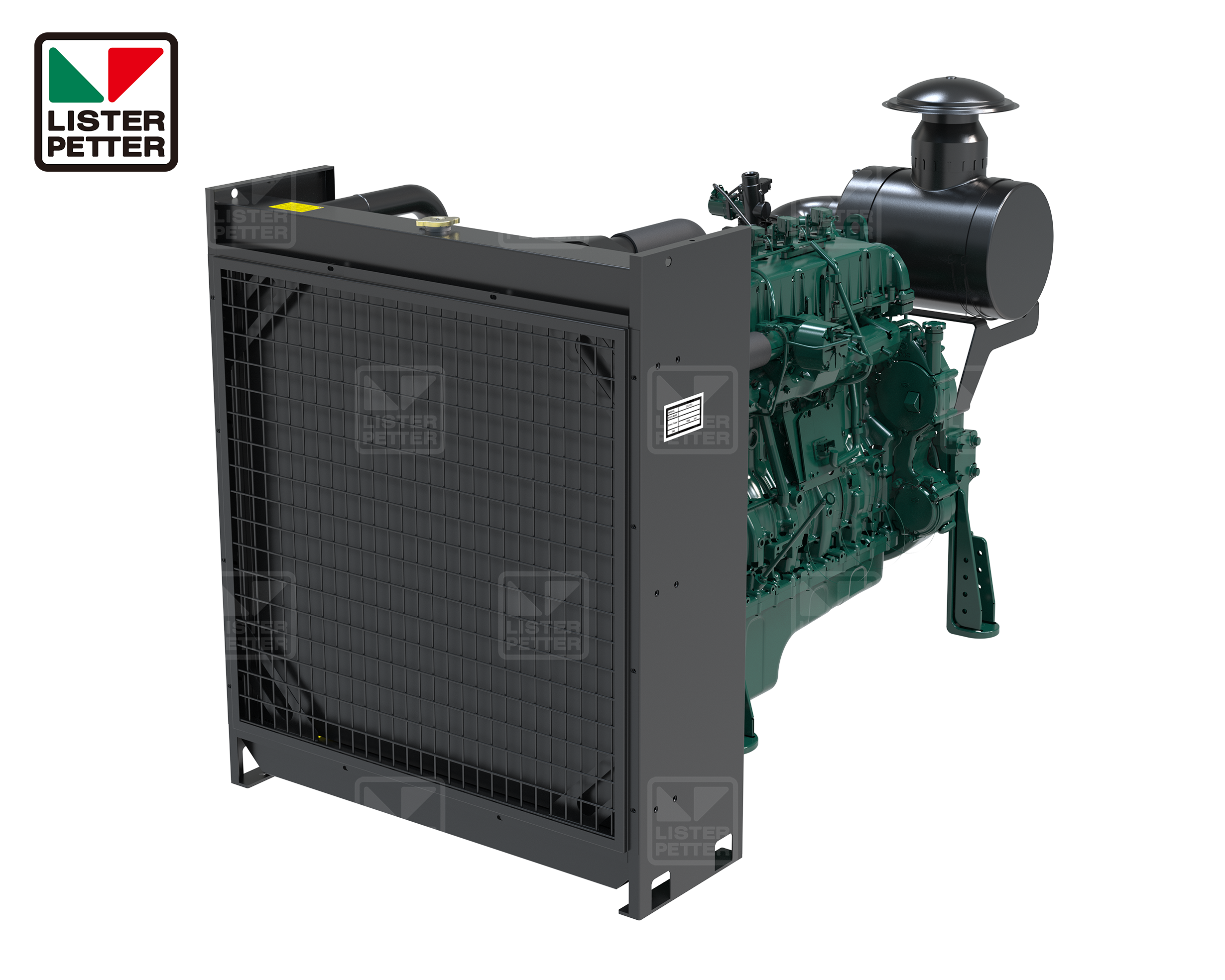

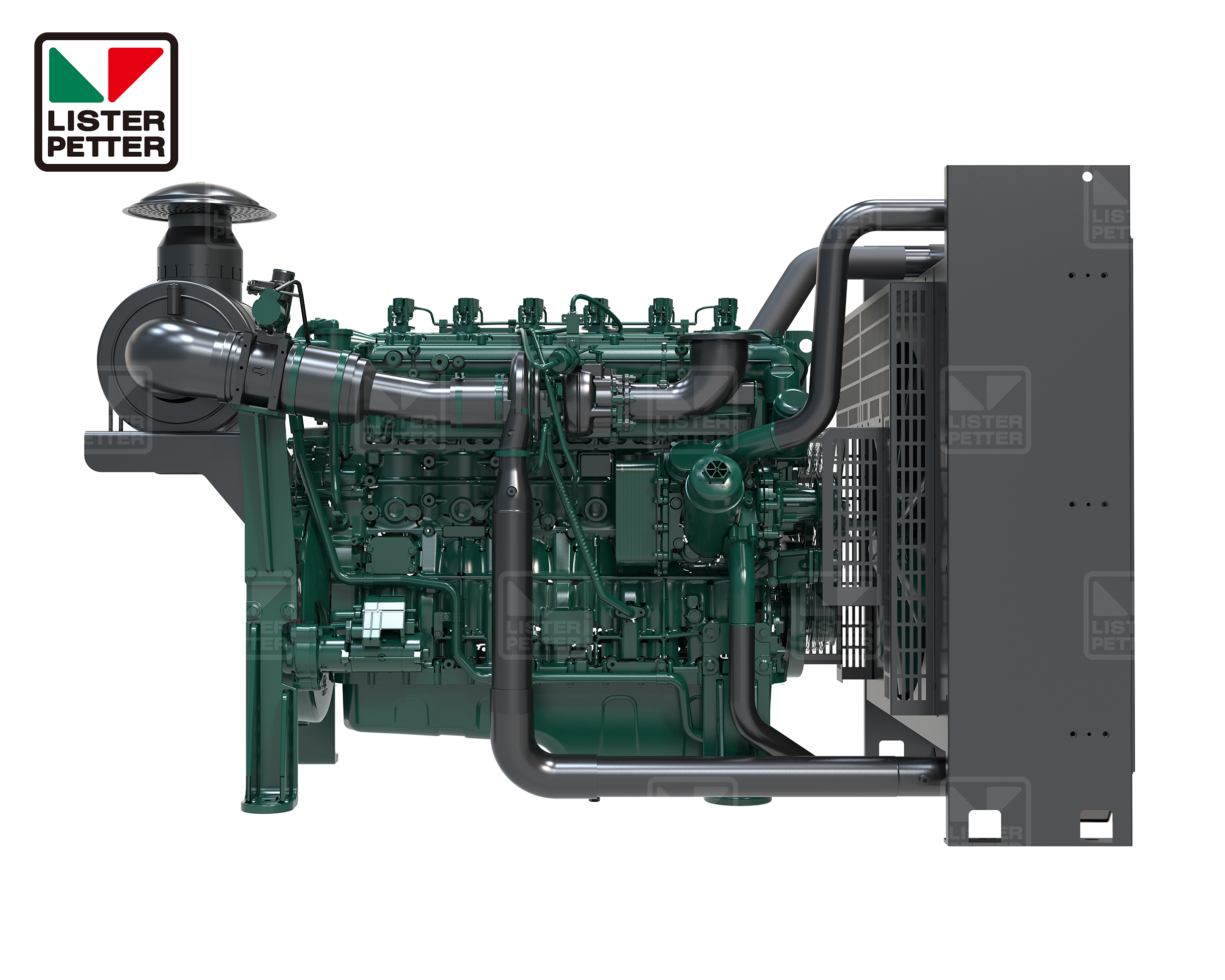

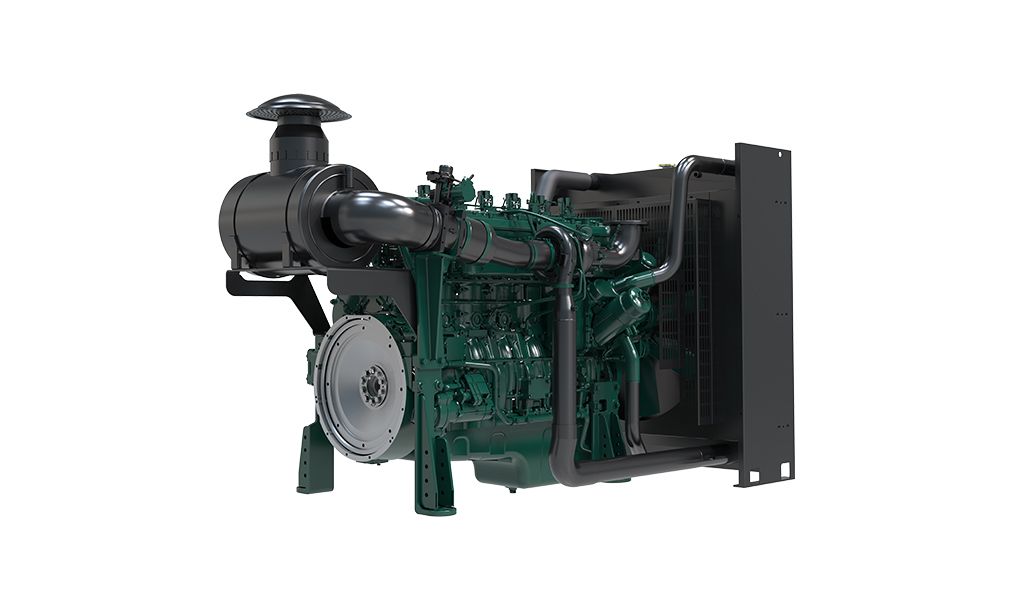

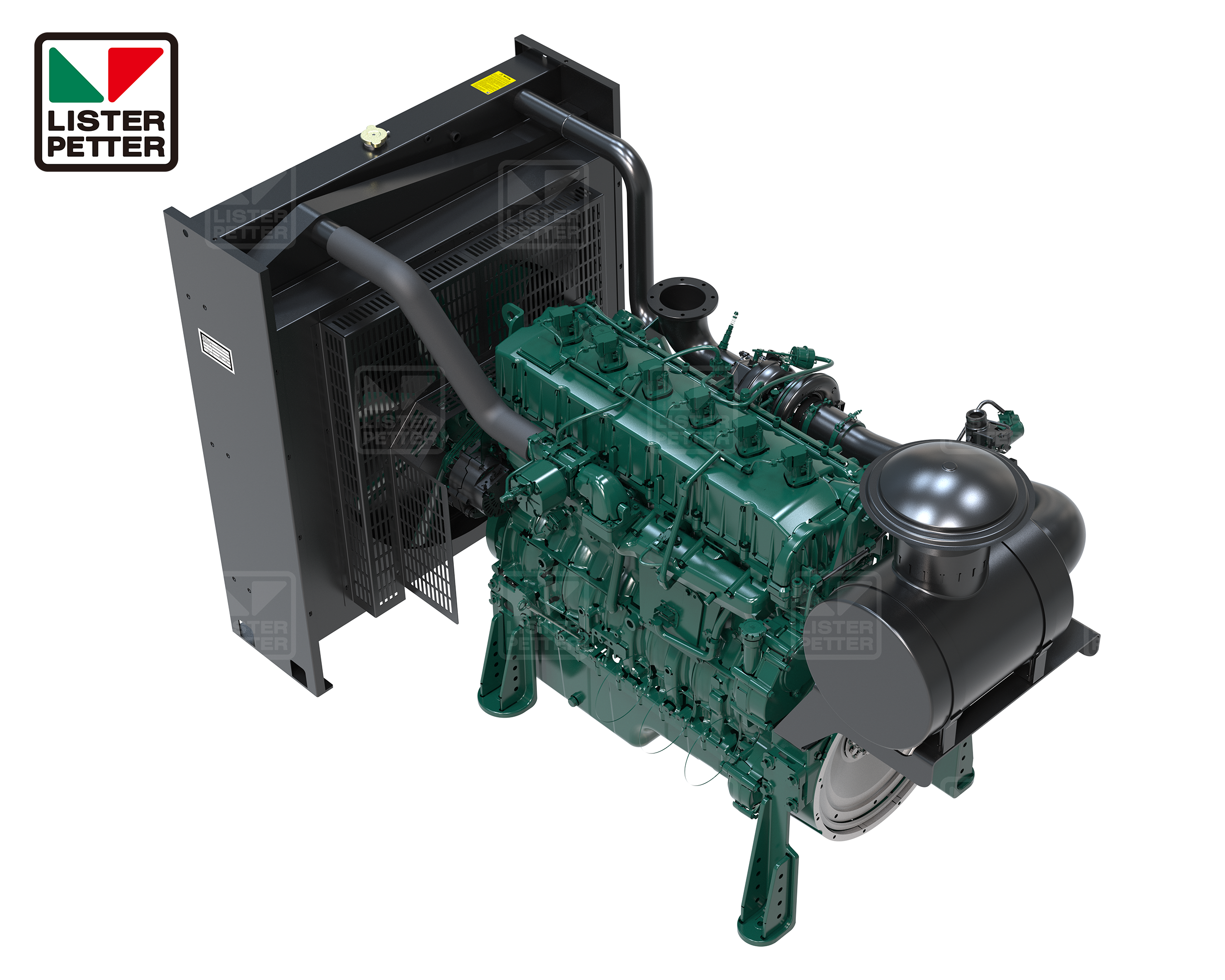

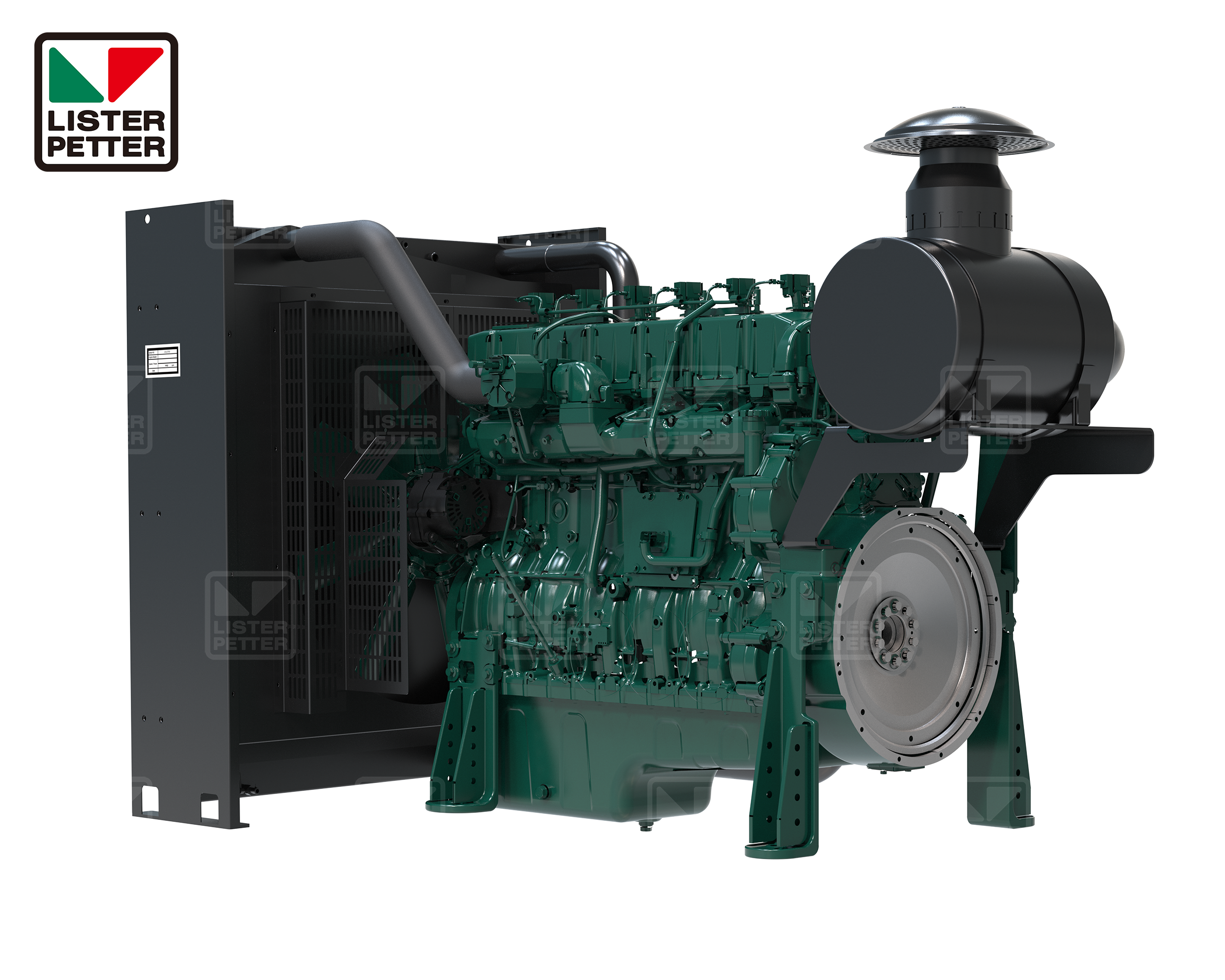

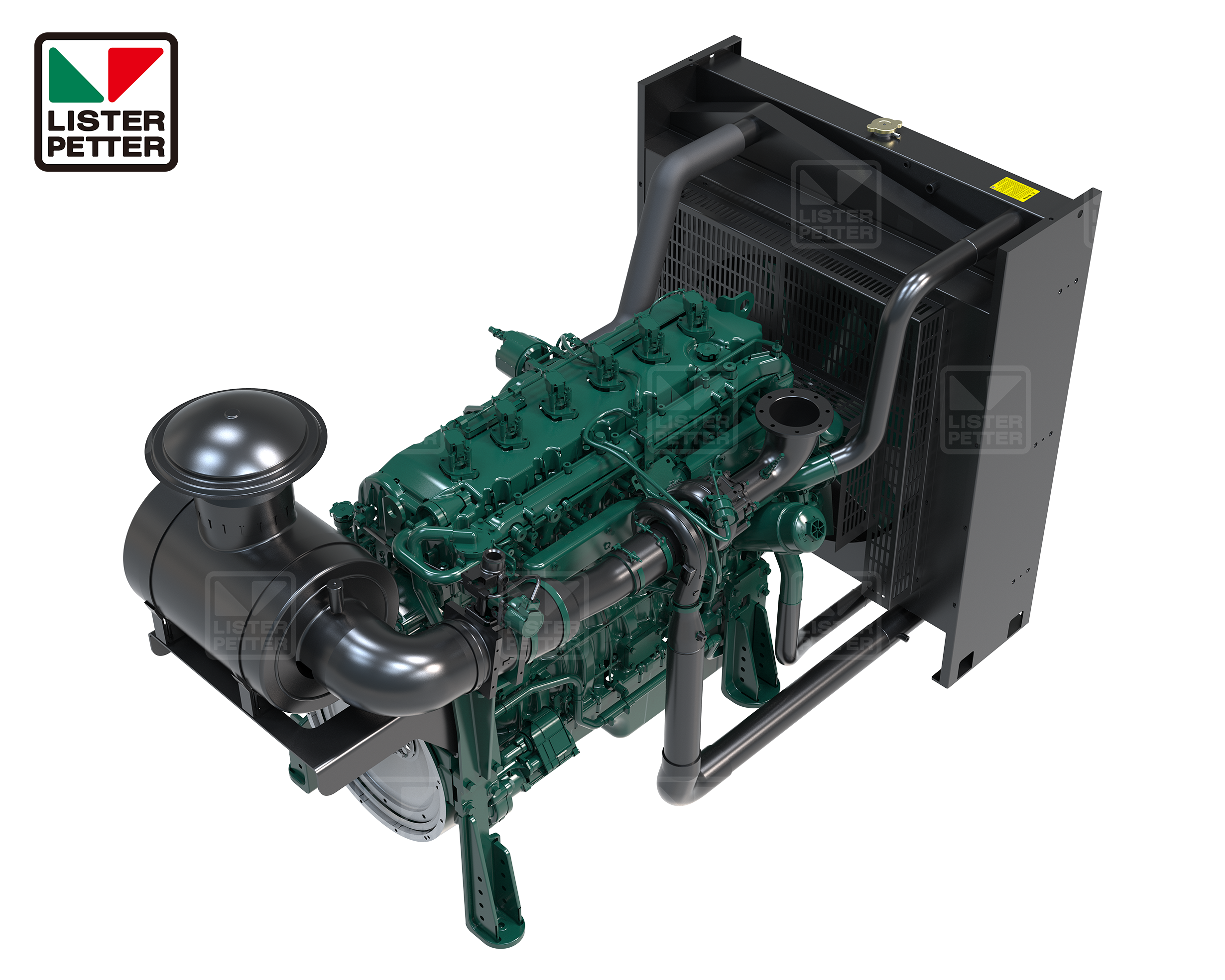

LP6E156NG1
Velocidades fijas
1500 | 1800 r/min
Potencia máxima
1500 r/min—435kW
1800 r/min—435W
| Engine prime power (kW) @1800rpm | 435 |
|---|---|
| Engine prime power (kW) @1500rpm | 435 |
| Type | 4-stroke-cycle, in-line, 6 cylinders |
| Bore / Stroke (mm) | 142 / 164 |
| Piston displacement (L) | 15.56 |
| Relación de compresión | 12.5 : 1 |
| Aspiración | Turbocharged intercooled |
| Rated speed (rpm) | 1500/1800 |
| Direction of rotation (flywheel end) | CCW |
| Flywheel housing | SAE1 |
| Flywheel diameter | 14" |
| Number of flywheel teeth | 121 |
| Ignition system | Digital ignition |
| Ignition order | 1-5-3-6-2-4 |
| Governor type | ECU |
| Net weight (kg) | 1450 |
| Length X Width X Height (mm) | 2700 X 1350 X 1695 |
| Load (%) | 100 丨 75 丨 50 |
| Input gas energy (kW) | 1218.5丨 919 丨 616.1 |
| Engine power (kW) | 435 丨 326.25 丨 616.1 |
| Gas consumption (m³/h) | 139.6 丨 105.3丨 70.6 |
| Heat rejection to coolant (kW) | 204.5 丨 125.5丨 95.5 |
| Heat rejection to aftercooling (kW) | 78.8 丨 46.7 丨 36.7 |
| Heat rejection to exhaust (kW) | 215.5 丨131.0 丨 99.6 |
| Heat rejection to atmosphere (kW) | 46.6 丨 28.8 丨 21.7 |
| Mechanical efficiency (%) | 39.96 丨 37.94 丨 35.15 |
| Thermal efficiency (%) | 46 丨 48 丨 50 |
| Total efficiency (%) | 85.96 丨 85.94 丨 85.15 |
| NOx @(5% oxygen content, 100% load) | <500 mg/Nm³ |
| CO @(5% oxygen content, 100% load) | <650 mg/Nm³ |
| Gaseous fuel type | Natural gas |
| Acceptable gas fuel | Pipeline quality natural gas |
| Combustion system type | Standard |
| Minimum fuel supply pressure (kPa) | ≥10 |
| Maximum fuel supply pressure (kPa) | <45 |
| Maximum fuel pressure variation | +/-5% |
| Maximum fuel temperature (℃) | ≤40 |
| Minimum Gas methane number (MN) | 80 |
| Minimum low heat value (LHV, MJ/m³) | 31.4 |
| Noise level @ 1 m | ≤99 dB (A) |
